CRS

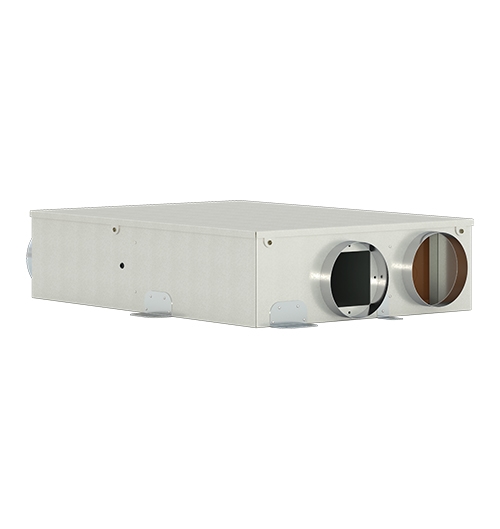

The CRS by Sicflux is a compact and efficient air exhaust/intake unit designed for spaces such as apartments, homes, and offices. This device performs two functions simultaneously: it brings in fresh, clean air from the outside and expels indoor air. During exhaust, the thermal energy from the indoor air is transferred to the heat recovery unit plates, either heating or cooling the incoming air depending on the season. This feature helps reduce energy costs by minimizing thermal losses.

Model Variety: Available in various sizes including CRS 100, CRS 125, CRS 150, and CRS 200, to meet different ventilation needs.

Buy Now!

Request a Quote

About the Product

Key Features:

✲ Dual operation: Efficient air intake and exhaust;
✲ Heat recovery: Enhances energy efficiency by reusing thermal energy from indoor air;
✲ Compact design: Ideal for spaces with limited area;
✲ High-quality filters: Complies with NBR 16401 standard [G3/G4/M5];
✲ Easy maintenance: Simple filter access via inspection door;
✲ Robust construction: Made of galvanized sheet metal for increased durability;
✲ Proven efficiency: Offers 68% thermal recovery and 65% humidity recovery efficiency;
✲ Motor with ball bearings for high durability and low noise levels;
✲ Maximum airflow: up to 910 m³/h;
✲ Safety: IP X4 / Class I.

Benefits:

✲ Reduced thermal losses: By transferring thermal energy between airflows, the CRS minimizes the need for additional heating or cooling systems.
✲ Energy efficiency: Lowers operational costs and enhances the performance of the space’s climate control system.

Technical Specifications

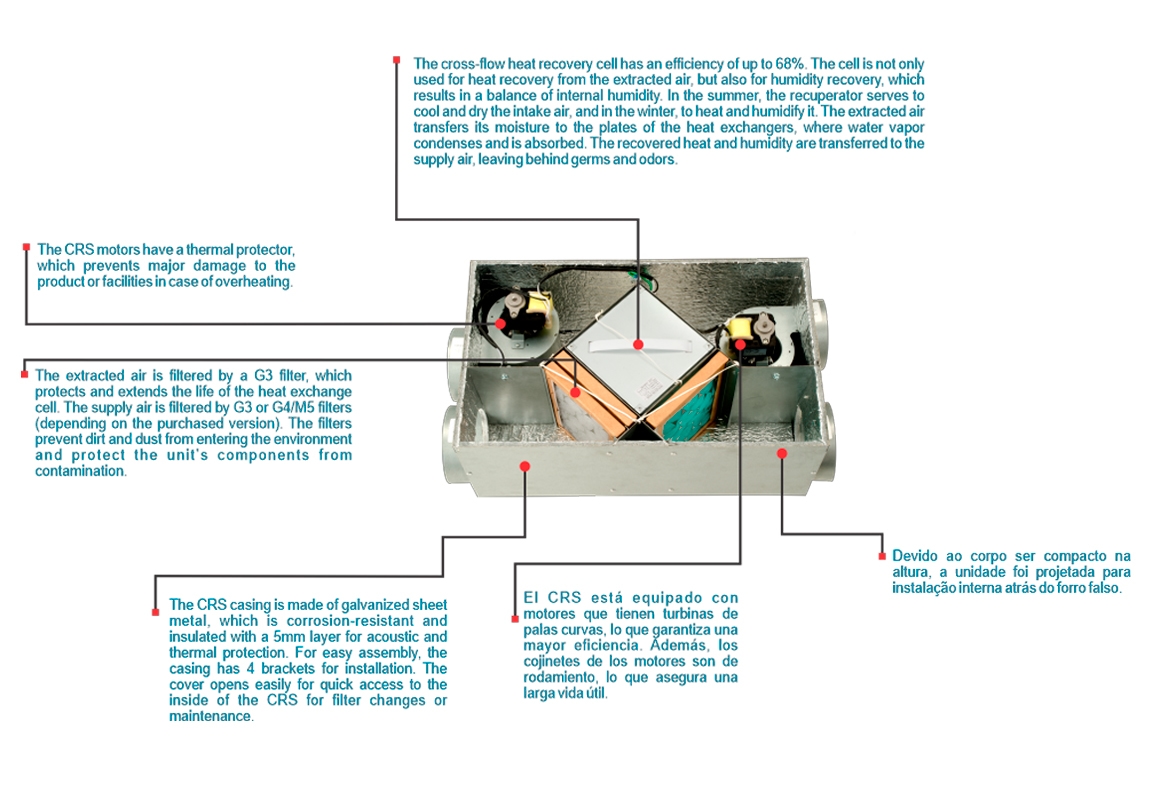

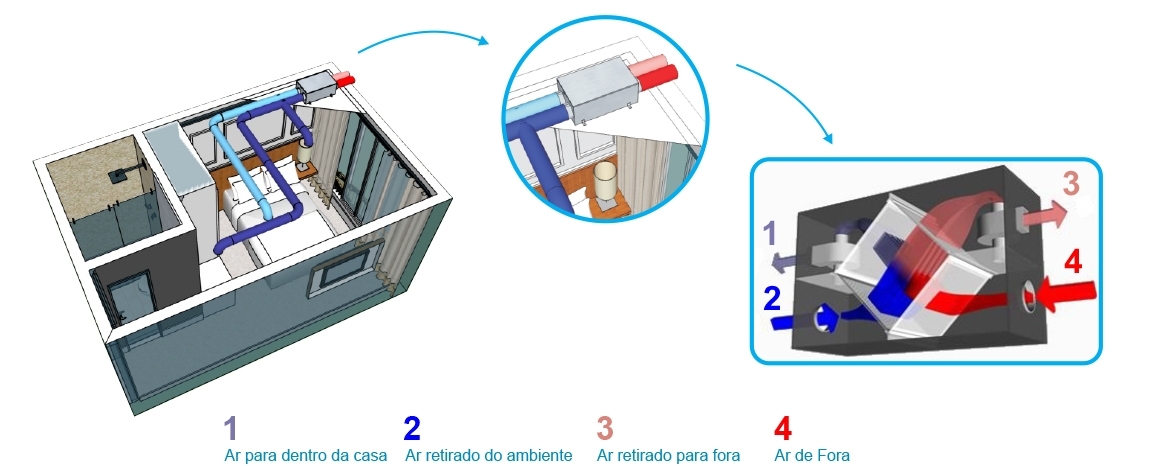

Operating Logic

1 – Air extracted from the room (cold or warm):

Indoor air is moved by the motor, passes through a filter to remove impurities, and reaches the thermal recovery cell. In this cell, the air transfers its thermal energy to the internal elements and is then expelled to the outside.

2 – Air brought in from outside:

Outdoor air is drawn in by the motor, filtered for purification, and then passes through the recovery cell. The cell absorbs part of the thermal energy from the extracted indoor air, and the air is then delivered back into the room.

3 – Thermal energy recovery:

Indoor and outdoor airflows cross through the heat recovery cell. This process reduces thermal energy loss, helping to optimize the system and lower operating costs for air heating or cooling, making the environment more energy-efficient.

			MODEL
			100 G3	100 G4/M5	125 G3	125 G4/M5	150 G3	150 G4/M5	200 G3	200 G4/M5
Maximum Flow Rate	m³/h	Exhaustion	118	118	182	182	630	630	910	910
	m³/h	Inflation	118	107	182	165	630	585	910	815
	CFM	Exhaustion	69	69	107	107	370	370	535	535
	CFM	Inflation	69	62		97	370	344	535	480
Frequency [Hz]			50/60
Motor Power [W]			25				280
Absorbed Power [W]			34/30				225
Total Power Absorbed [W]			68/60				450
Sound Pressure Level [dBA]			43	43	41	41	65	65	62	62
Single Phase Voltage [V]			127 / 230				230
Maximum Pressure [mmca]		Exhaustion	15	12	13		38	38	35	35
Maximum Pressure [mmca]		Inflation	15	12	13	11	38	35	35	35
Duct [In]			4	4	5	5	6	6	8	8
Insulation Material			Expanded low-density polyethylene – closed cells (LDPE) laminated with aluminum film.
Exhaust filter			G3	G3	G3	G3	G3	G3	G3	G3
Inlet filter			G3	G4/M5	G3	G4/M5	G3	G4/M5	G3	G4/M5
Thermal recovery efficiency			68 %
Moisture recovery efficiency			65 %
Recovery mode and material			Crossed with Enthalpy paper

*Technical specifications for 230 V / 60 Hz. Noise level measured at 1 meter away with the unit connected to ducts. Airflow and pressure data already account for filter pressure loss at half lifespan.
