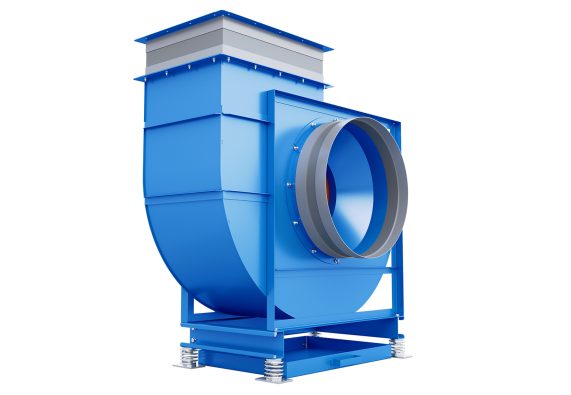

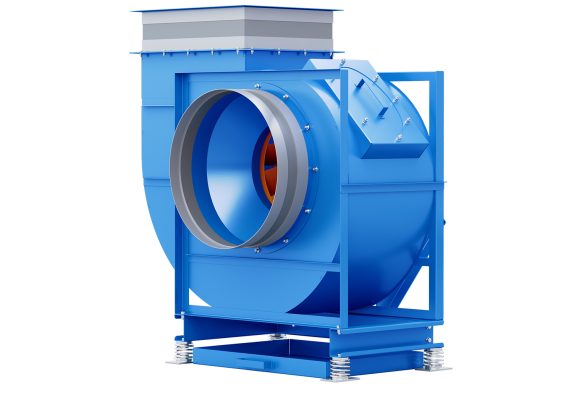

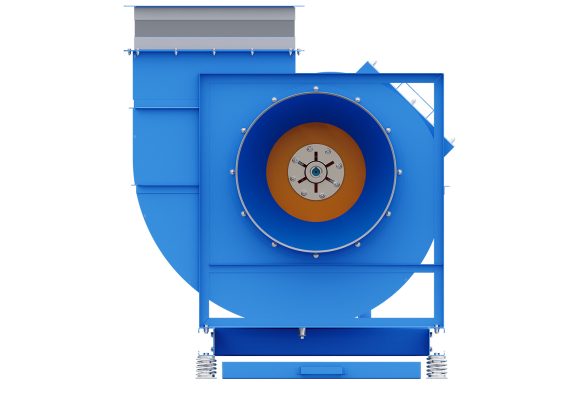

Titan LSC/LSF

    The Titan LSC/LSF line consists of Limit Load centrifugal fans, with backward-inclined straight blades and single-inlet configuration. It features a reinforced structure, a fully welded scroll casing with high-temperature seals, and a robust construction with sheet metal thickness suitable for each application.

    Designed for commercial and industrial kitchens, especially for smoke extraction, the line offers direct and indirect drive options and operation at 400 °C for up to 2 hours.

    Request a Quote

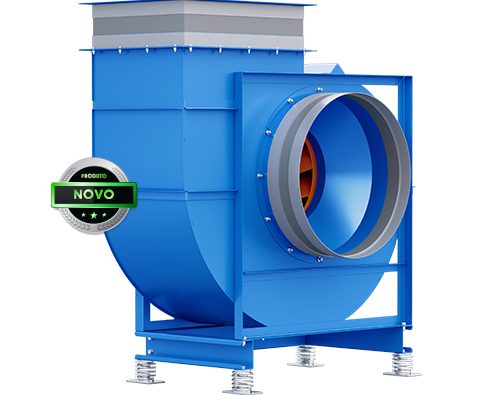

    About the Product

    Main Features

    • Type: Limit Load centrifugal fan, with backward-inclined straight blades and single-inlet configuration.
    • Material and construction: robust construction, with sheet metal thickness suitable for each application.
    • Structure: reinforced for greater durability.
    • Scroll casing: fully welded, with high-temperature seals.
    • Impeller: dynamically balanced for improved performance.

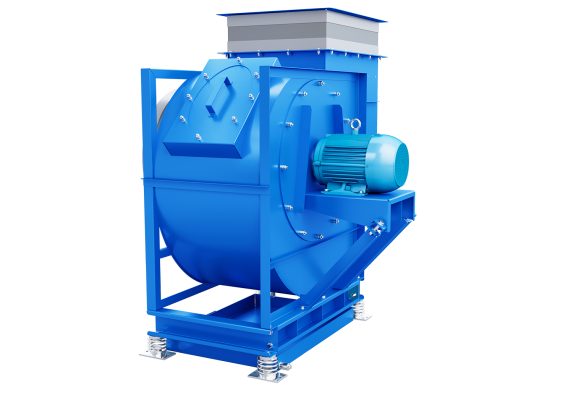

    • Drive: direct and indirect.
    • Maximum operating temperature: 400 °C for 2 hours.
    • Application: ideal for commercial and industrial kitchens, especially for smoke extraction.

    Optional Items / Accessories

    • High-temperature-resistant flexible connector.
    • Vibration dampers.
    • Inspection door.
    • Tray.
    • Drain.

    Accessory availability by product line:

    • Titan LSC: the drain and inspection door are standard items. All other items are supplied only as optional accessories.
    • Titan LSF: all items are supplied as optional accessories.


    Technical Specifications

    Models

    Titan LSC 200 a 1000

    Titan LSF 200 a 1000

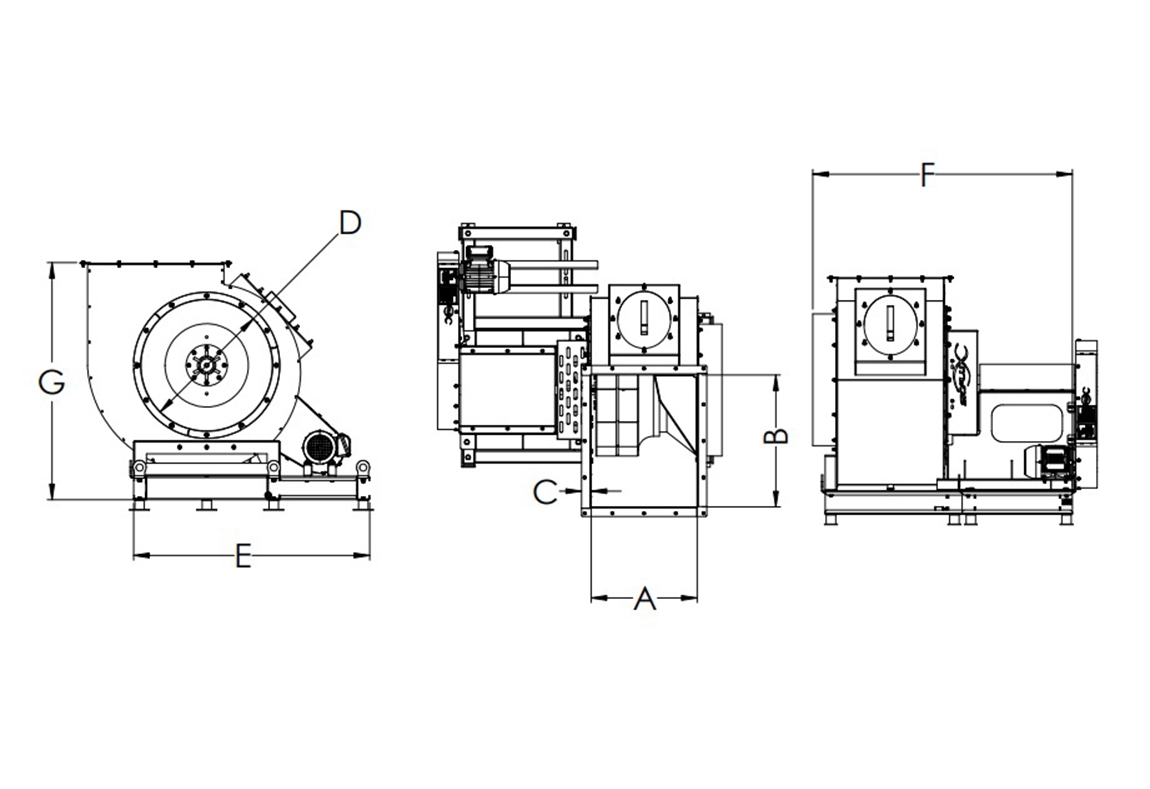

    ModelDimensions (mm)Weight (kg)
    ABB’ (BLSC/BLSF)CD (Bocal)dEF
    2001652002604020027037533050
    2241802242974022429438036058
    2502002503204025032045041566
    2802242803674028035045045574
    3152503154154031538553051084
    3552803554604035542558058096
    40031540051040400470700650109
    45035545057040450520730725123
    50040050064040500570805805140
    56045056071040560630875890180
    630500630800406307009801000200
    7105607109004071078011501140250
    80063080010104080087011851270340
    90071090011304090097014351420490
    100080010001265401000107014951585510
    112090011201410401120119017301775620
    1250100012501580401250132017751995820
    *Dimensions in millimeters. The listed weights are approximate and do not include the electric motor.

    Frequently Asked Questions

    The main function of an exhaust fan is to extract gases and vapors from an indoor environment to the outside, renewing the indoor air.

    When purchasing your exhaust fan, remember to check the unit’s dimensions and the manufacturer’s installation instructions.

    The installation of the exhaust fan must comply with standard NBR 16401-2008, both in terms of performance and dimensions and construction characteristics.

    A good exhaust system should always provide better air quality while meeting the needs of your space. If you are unsure which product is best suited to your needs, you can contact one of our specialists. Our team has the expertise and technical knowledge to help you make the best choice.Um bom sistema de exaustão deve sempre oferecer uma melhor qualidade do ar, atendendo as necessidades do seu ambiente. Se você não sabe qual o melhor produto, você pode estar em contato com um de nossos especialistas. Contamos com uma equipe especializada e com os conhecimentos técnicos necessários para te ajudar na melhor escolha.
