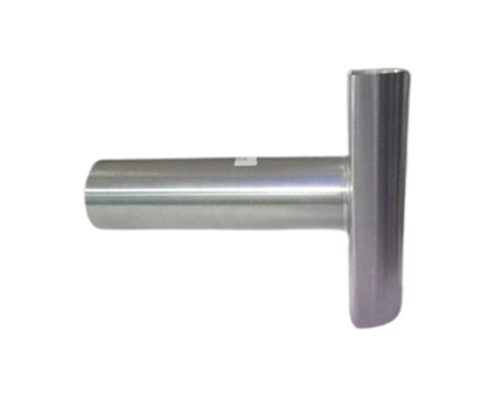

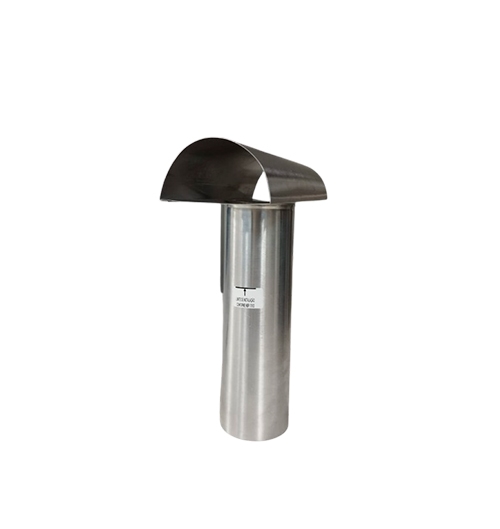

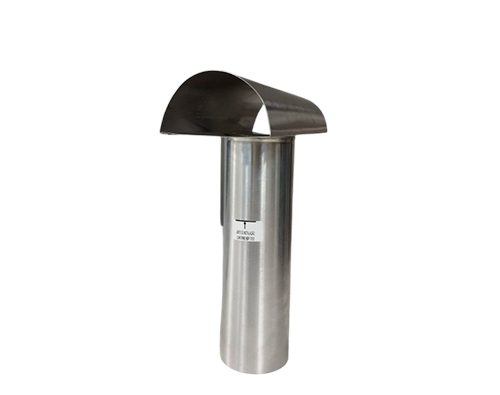

The T Terminal is made up of a polished aluminum flange and neck. It is used on fades as a chimney end cap, preventing the return of combustion gases.
Built with reinforced aluminum, the Sicflux T Terminal offers exceptional strength and durability. Its non-combustible properties (operating from -40°C to +200°C) protect your installation, while its corrosion resistance ensures a long, worry-free service life. Fully compliant with NBR 13103, it is the only one on the market that guarantees proper dispersion of exhaust gases and prevents wall overheating.
About the Product
Key Features:
✲ Sturdy structure made of reinforced aluminum
✲ Non-combustible raw material
✲ Special crimping
✲ Compliance with NBR 13103 standard
✲ Corrosion-resistant
✲ Operating temperature from -40°C to +200°C
Note: The product must not come into contact with chlorine-based (Cl) and/or sodium hydroxide (NaOH) products.
Technical Specifications

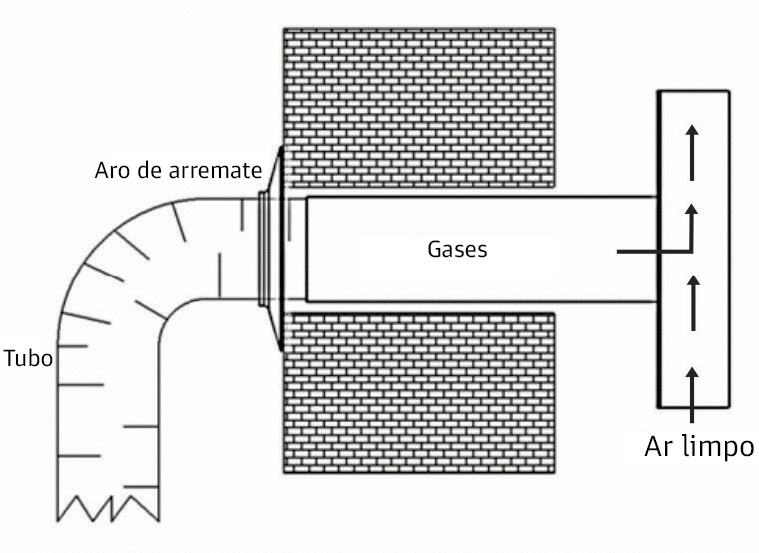

To install the T Terminal safely and effectively according to NBR 13103, position it at the wall opening with an exact 10 cm gap between the wall and the flange, as indicated on the product label. This clearance is essential to ensure proper ventilation, dissipate exhaust heat, reduce fire risk by keeping combustible materials away from the wall, and optimize the correct flow of gases.
| Model | Dimensional | |||||
|---|---|---|---|---|---|---|
| NominalØ | ExternalØ | A | B | C | D | |
| TTS60 | 60* | 70* | 300* | 46,7* | 210* | 93,3* |
| TTS80 | 80* | 90* | 300* | 60* | 270* | 120* |
| TTS100 | 100* | 110* | 300* | 73,3* | 330* | 146,6* |
Vista Superior
