Titan VAL

    The Titan VAL line features axial fans constructed from steel sheet, with high-quality axial impellers and an aerodynamic design developed to ensure efficient airflow and reduce drag, optimizing performance.

    The line is available in three arrangements: 4, 9, and J, offering different configurations to meet project requirements. Optional features and accessories for assembly and installation are also available.

    Buy now!
    Request a quote

    About the Product

    Key Features

    • Steel sheet construction for strength and durability.
    • High-quality axial impeller for efficient airflow.
    • Aerodynamic design to reduce drag and optimize performance.
    • Available arrangements: 4, 9, and J.

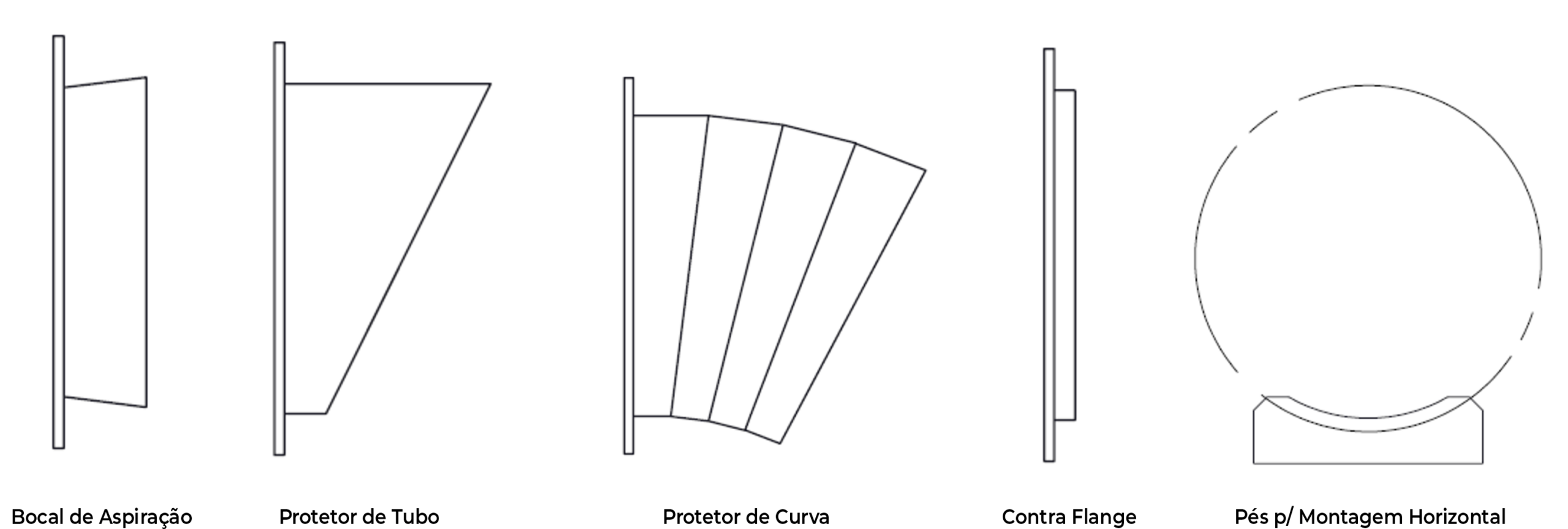

    Optional Features and Accessories

    Counter-flange.

    Inlet cone.

    Duct guard for increased safety.

    Elbow guard.

    Feet for horizontal mounting.

    Technical Specifications

    TITAN VAL 4 – 315 a 1000

    MODELDIMENSIONS (mm)WEIGHT (kg)PACKAGING DIMENSIONS
    ØABCn x ØdDLxCWEIGHT (kg)
    3153223553826X103607,50,55 X 0,503,5
    3553613954218X104209,50,60 X 0,604,5
    4004044404648X10440120,60 X 0,604,5
    4504534905138X12540150,65 X 0,706
    5005075405678X12630220,70 X 0,807
    5605696106398X15570220,80 X 0,757,5
    6306386807088X15590340,85 X 0,758
    7107157557858X15600400,95 X 0,759
    8008008458778X15690631,05 X 0,8511
    9009009459748X15850901,15 X 1,0014
    10001000105010838X159501201,25 X 1,1016,5
    The weights listed are approximate and do not include the electric motor.

    TITAN VAL J – 315 a 900

    MODELDIMENSIONS (mm)WEIGHT (kg)PACKAGING DIMENSIONS
    ØABCn x ØdEFØGHLxC (m)PESO (KG)
    3153223553826X101105601030130,70 × 0,705
    3553613954218X101105601030140,70 × 0,705
    4004044404648X101305601030170,70 × 0,705
    4504534905138X121306601230230,80 × 0,806,5
    5005075405678X121806601230250,80 × 0,806,5
    5605696106398X151807601530340,95 × 0,959
    6306386807088X152007901530410,95 × 0,959
    7107157557858X152208701530581,05 × 1,0511
    8008008548778X152409801530731,15 × 1,1513,5
    9009459459748X1525010801530941,25 × 1,2516
    *The weights listed are approximate and do not include the electric motor.

    TITAN VAL 9 – 355 a 1000

    MODELDIMENSIONS (mm)WEIGHT (kg)PACKAGING DIMENSIONS
    ØABCn x ØdDILxCWEIGHT (kg)
    3553613954218X10445125 / 168130,60 X 0,604,5
    4004044404648X10445145 / 185180,65 X 0,655,5
    4504534905138X12445145 / 165 / 280200,65 X 0,655,5
    5005075405678X12445165 / 185 / 320250,75 X 0,656,5
    5605696106398X15530145 / 185 / 240310,80 X 0,757,5
    6306386807088X15530185 / 280350,85 X 0,757,5
    7107157557858X15740280 / 320850,95 X 0,9510
    8008008458778X15740280 / 320881,05 X 0,9511
    9009009459748X157403801041,15 X 0,9514
    10001000105010838X15920320 / 380 / 4651421,25 X 1,1016,5
    *The weights listed are approximate and do not include the electric motor.

    Optional Features / Accessories

    Models

    TITAN VAL 4 – 315 a 1000

    TITAN VAL J – 315 a 900

    TITAN VAL 9 – 355 a 1000

    Frequently Asked Questions

    The main function of an exhaust fan is to extract gases and vapors from an environment to the outside, renewing the indoor air.

    When purchasing your exhaust fan, remember to check the equipment dimensions and the manufacturer’s installation guidelines.

    The installation of the exhaust fan must comply with standard ABNT 14.518/2020, in terms of performance, dimensions, and construction characteristics.

    A good exhaust system should always provide better air quality while meeting the needs of your environment. If you are unsure which product is best suited to your needs, you can contact one of our specialists. Our specialized team has the technical knowledge needed to help you make the right choice.Um bom sistema de exaustão deve sempre oferecer uma melhor qualidade do ar, atendendo as necessidades do seu ambiente. Se você não sabe qual o melhor produto, você pode estar em contato com um de nossos especialistas. Contamos com uma equipe especializada e com os conhecimentos técnicos necessários para te ajudar na melhor escolha.
