Designed for airflow and static pressure balance in ventilation and air conditioning systems, to meet building code and ventilation standards through a motorized damper operated with 24V temperature/humidity monitoring sensors.
About the Product
Technical Specifications
| Part ID | Round Duct Size | Voltage | Frequency (HZ) | Current (Amps) | Power (W) | Insulation Class | Rated Ambient (°C) | Noise (dB) |
| MD4 | 4 | 24V | 60 | 0.3 | 6 | A | 40 | ≤50 |
| MD5 | 5 | |||||||
| MD6 | 6 | |||||||
| MD8 | 8 |

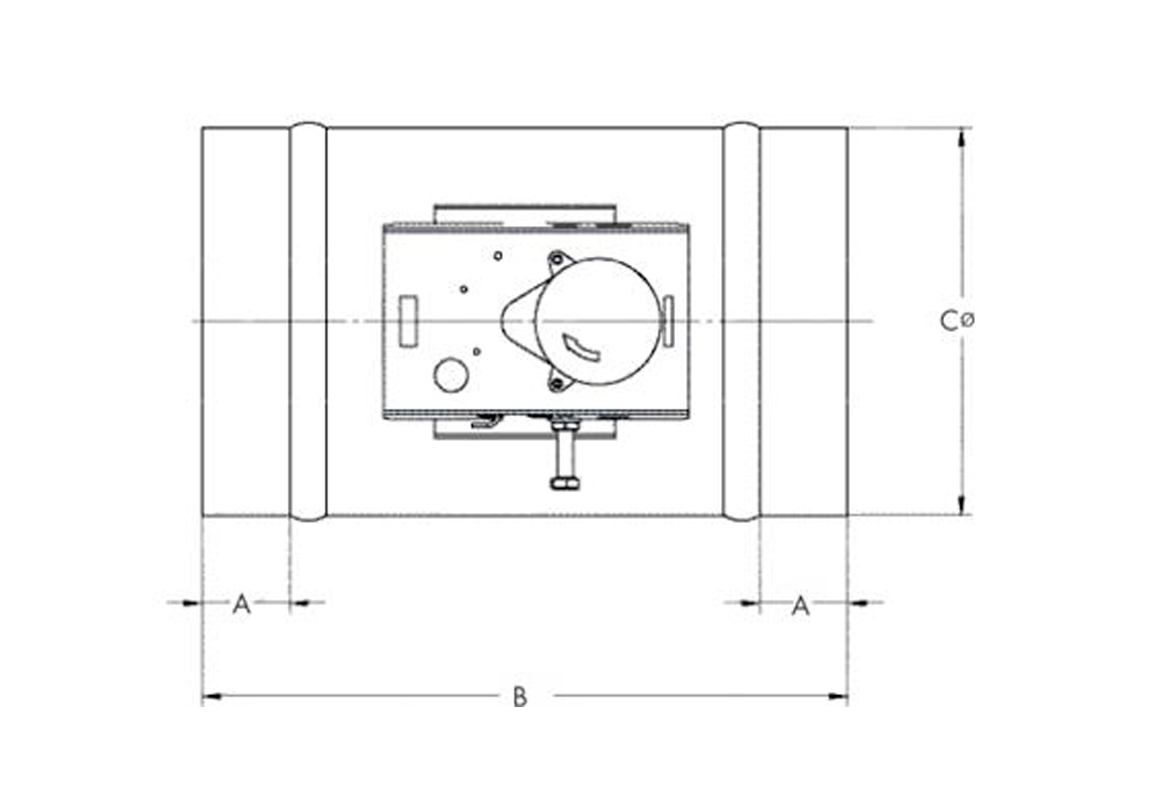

| Model | A | B | C |
| MD4 | 1-3/8 | 9-7/B | 4 |
| MD5 | 1-3/8 | 9-7/B | 5 |
| MD6 | 1-3/8 | 9-7/B | 6 |
| MD8 | 1-3/8 | 9-7/B | 8 |
Models
