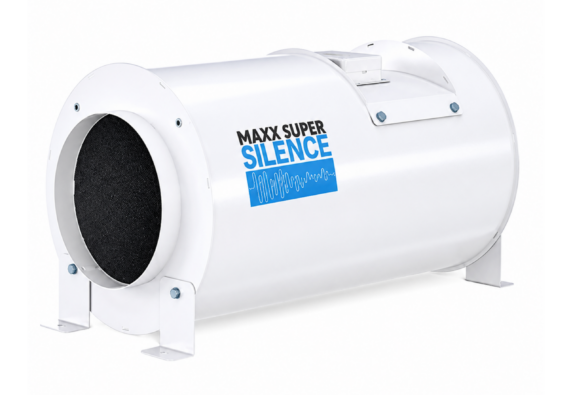

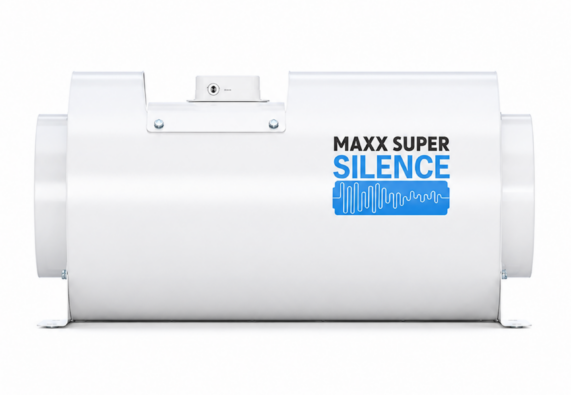

Maxx Super Silence

The Maxx Super Silence Exhaust Fan from the Maxx line is a state-of-the-art model that redefines the concept of efficient ventilation and quiet operation in ventilation systems.

Designed with the exclusive Silence Acoustic Design technology, it delivers maximum performance with minimum noise.

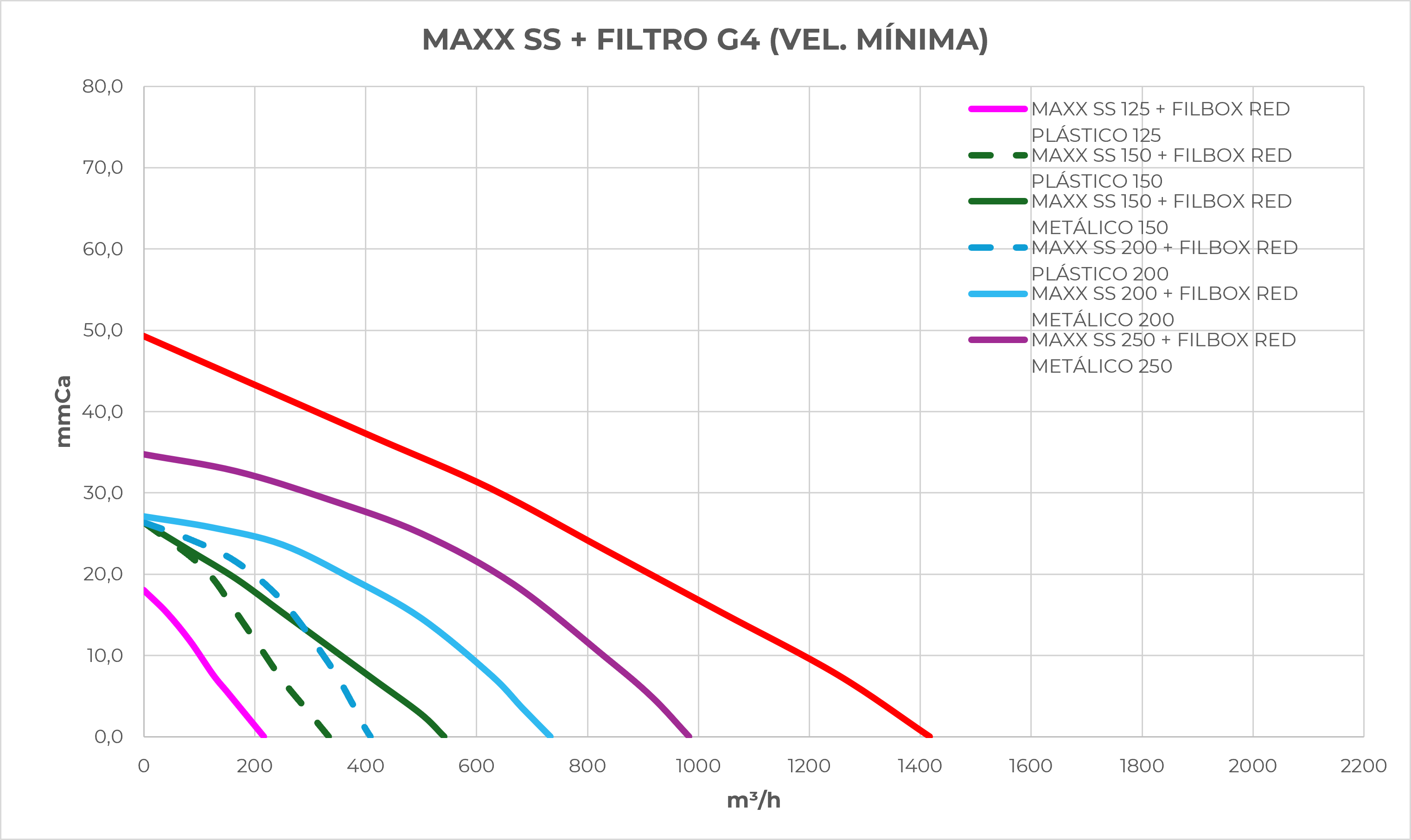

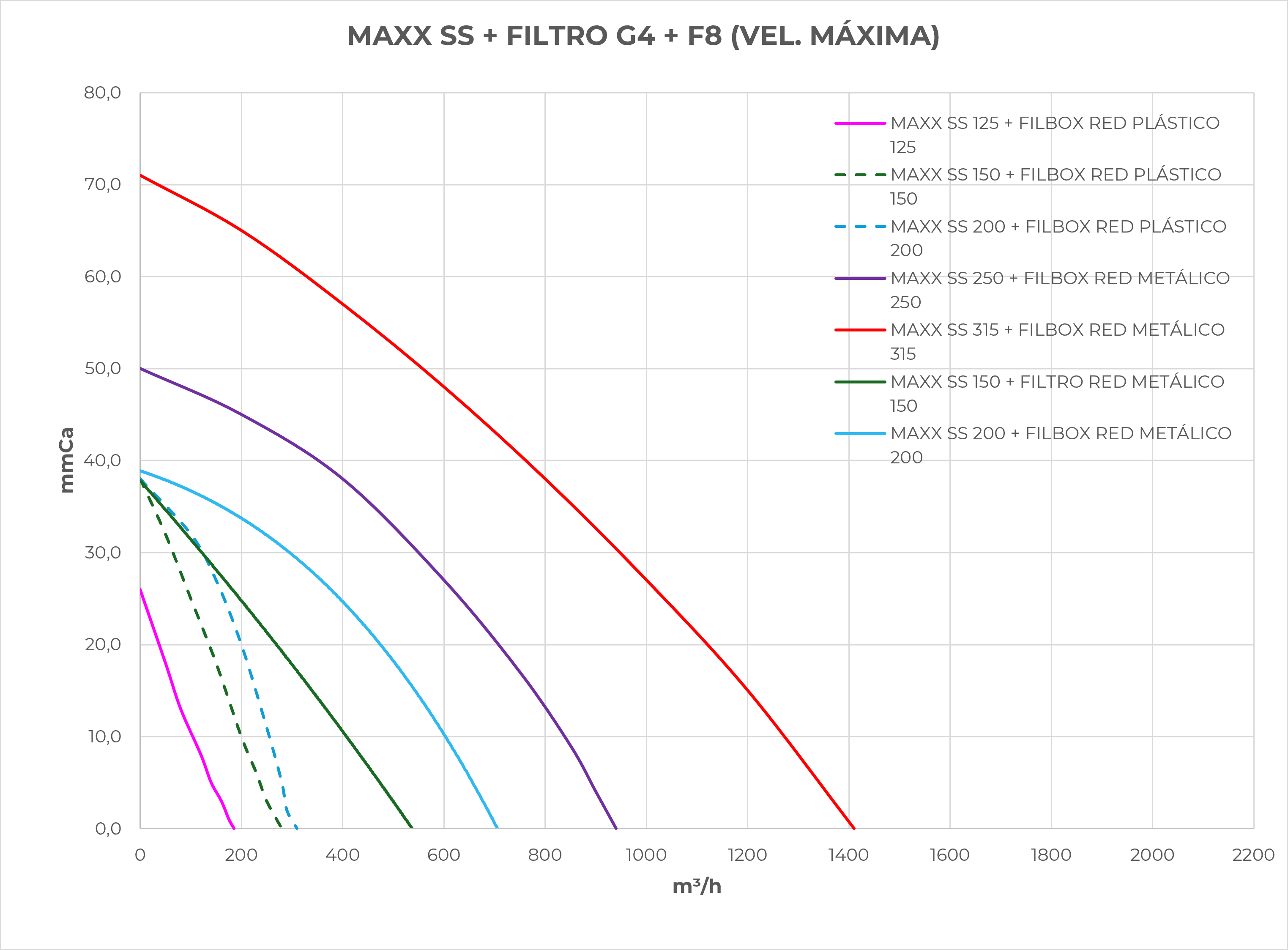

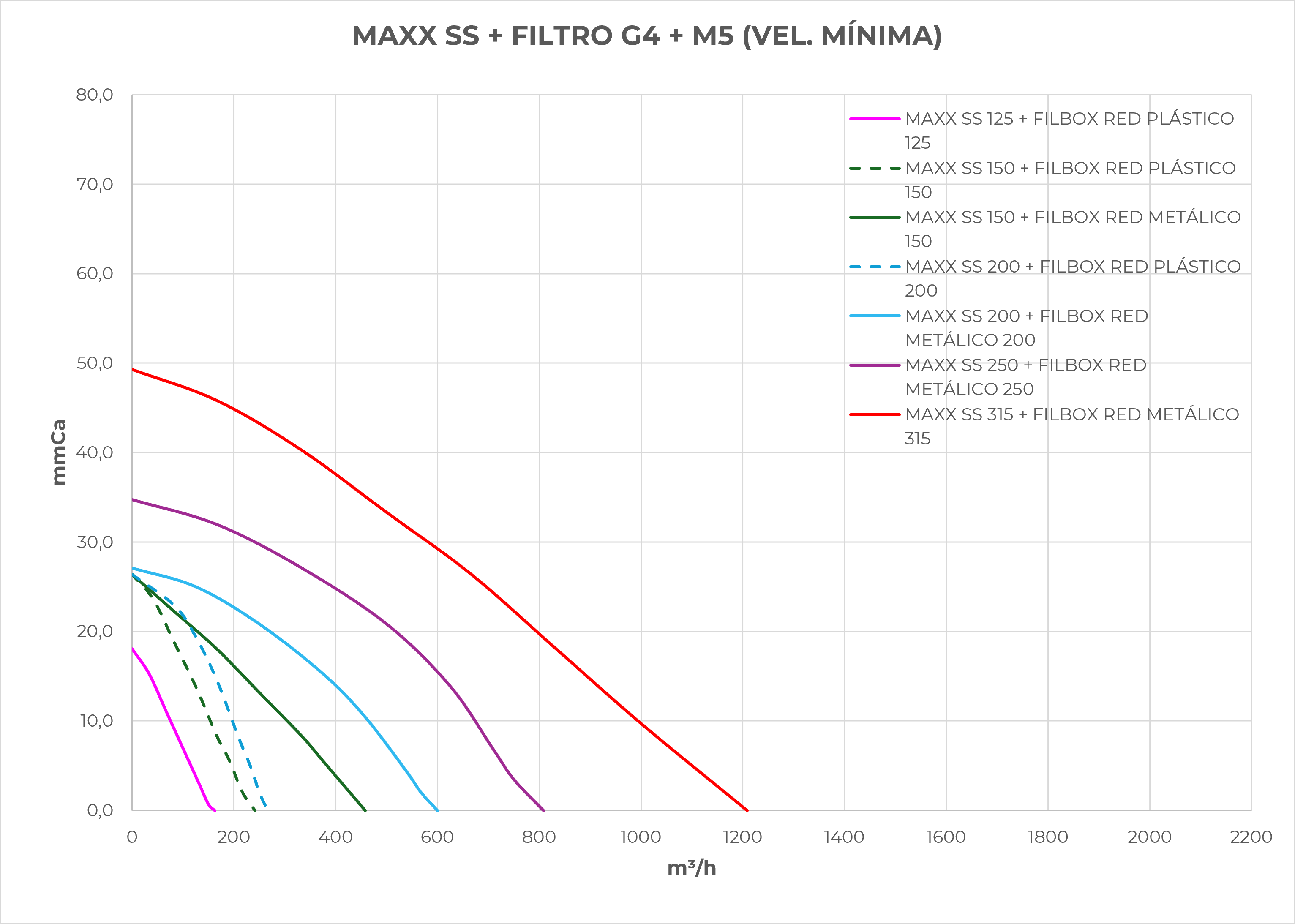

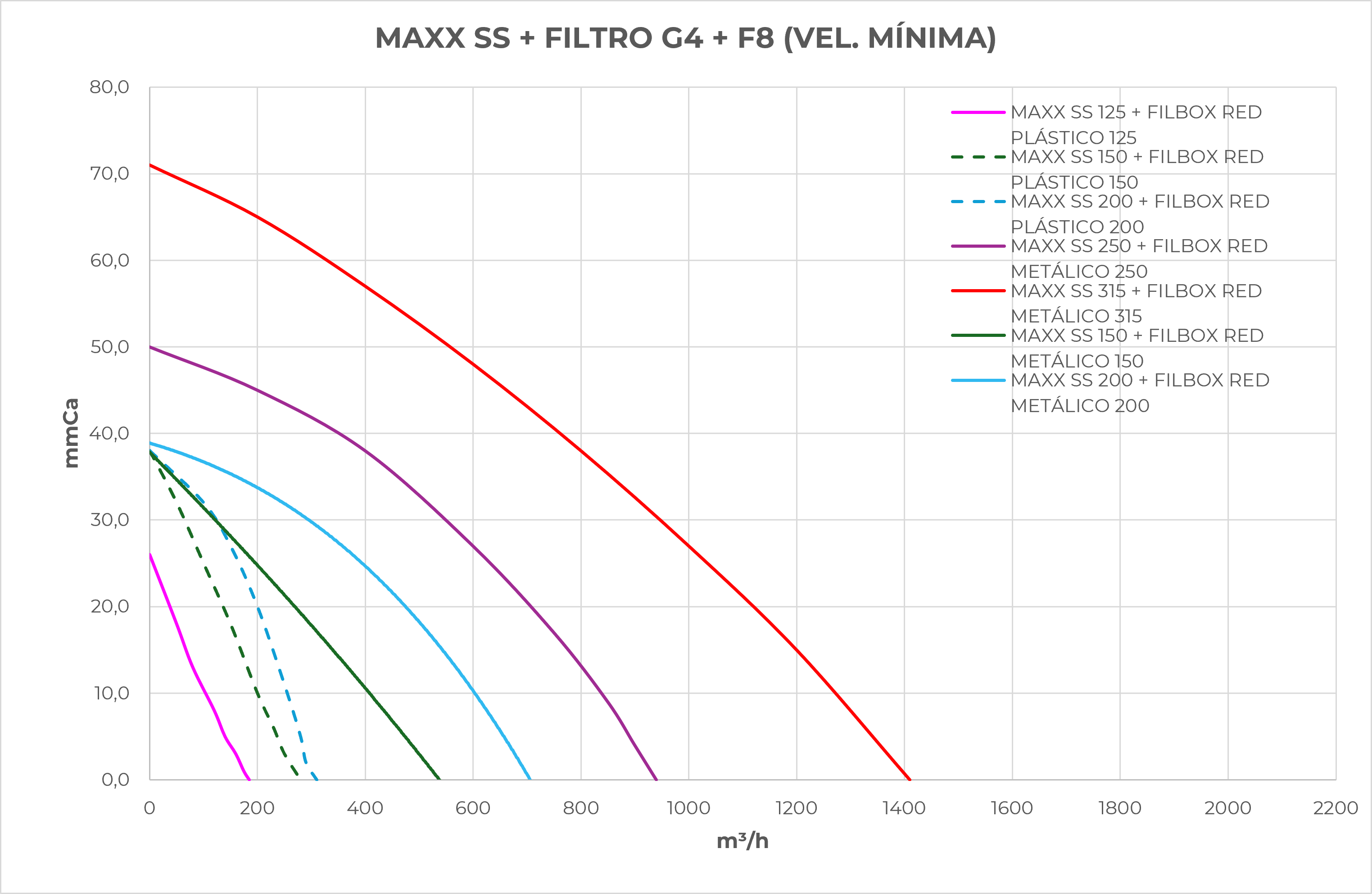

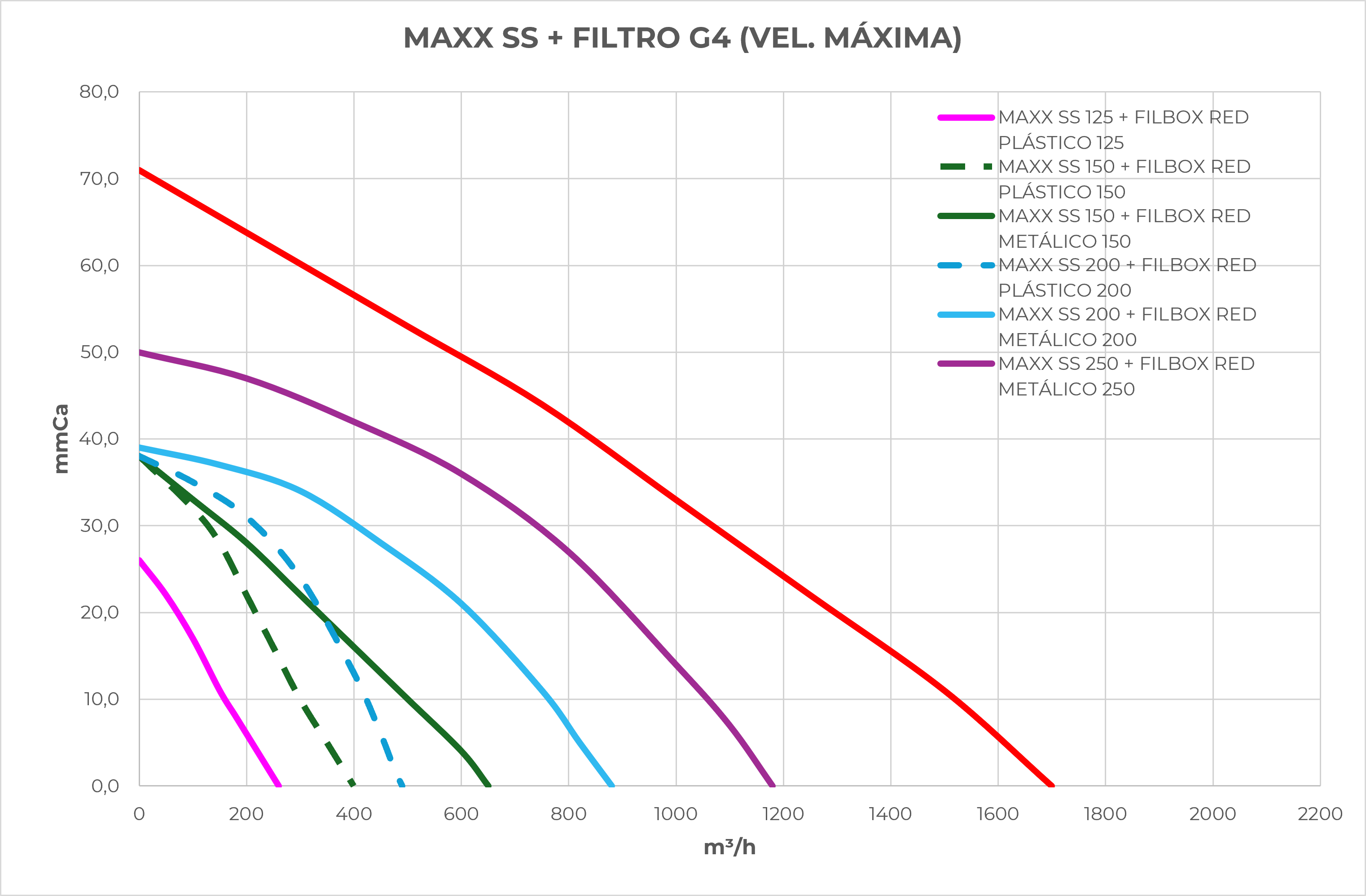

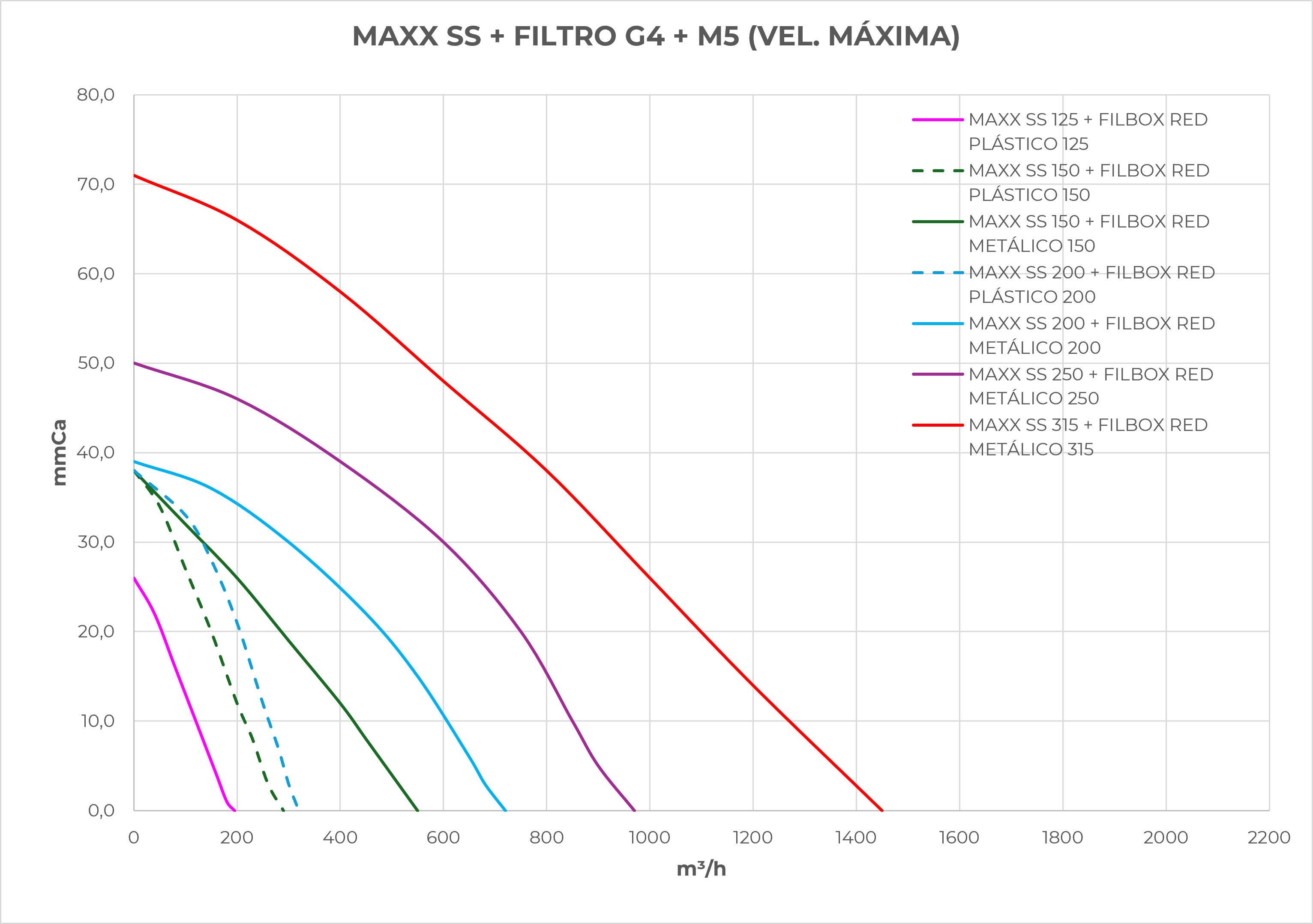

Outdoor Air Intake: Compatible with Filbox line filters, allowing high-quality outdoor air intake.

High Pressure and Airflow: Ideal for installation in long duct systems, providing efficient in-line support with high pressure and high airflow.

Buy Now!

Product Page

Product Overview

Aviation-Inspired Technology:

Inspired by commercial aircraft cabins, Silence Acoustic Design technology combines sound-absorbing materials with intelligent aerodynamic structural shapes. This innovation significantly reduces vibrations and noise generated by the airflow and the motor-fan assembly, ensuring nearly imperceptible operation.

Key Features:

Inline exhaust fan with an ultra-low noise level;
Exclusive SILENCE ACOUSTIC DESIGN technology;
Diameters from 125 to 315mm;
Airflows from 245 to 2000 m³/h;
Maximum pressures from 17 to 70 mmWG;
Available in 220V;
White epoxy-painted or galvanized finish;
Patent pending.

Optional Features

Anti-Mold
Silencius
Timer

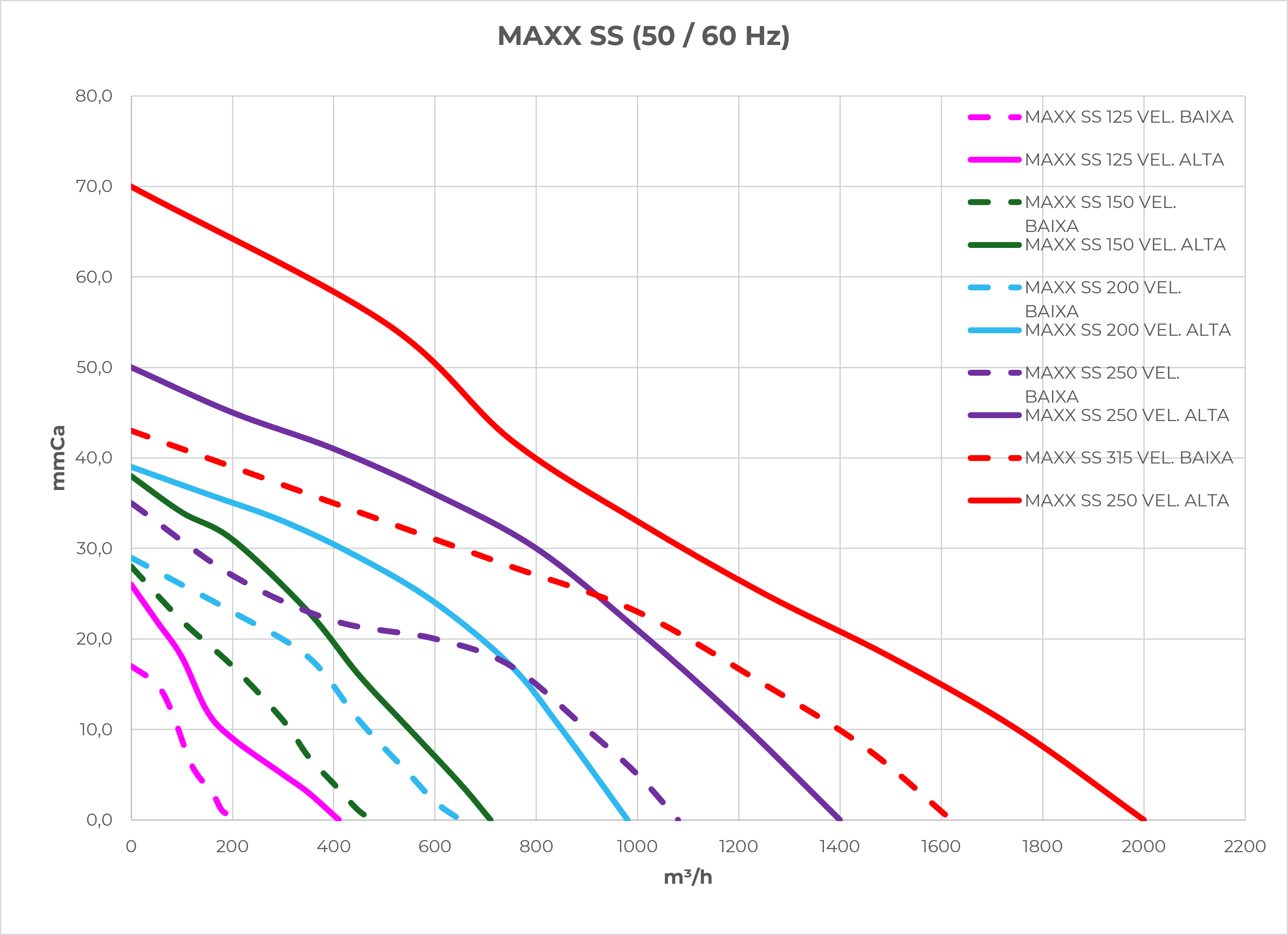

Technical Specifications

MAXX SUPER SILENCE			MODEL
MAXX SUPER SILENCE			125	150	200	250	315
Frequency	50 / 60 Hz
Maximum Airflow	m³/h	Min	245	475	660	1083	1620
	m³/h	Max	410	710	996	1400	1620
	CFM	Min	144	280	388	637	953,37
	CFM	Max	241	418	586	824	953,37
Maximum Pressure	mmWG	Min	17	28	29	37	43
	mmWG	Max	26	38	39	50	43
	In. W.G	Min	0,669	1,102	1,142	1,457	1,692
	In. W.G	Max	1,024	1,496	1,535	1,969	1,692
Single-Phase Voltage [V]			220 V
Total Power Consumption [W]	220 V	Min	51,452	46,774	46,774	154,357	257,261
Total Power Consumption [W]	220 V	Max	72,033	65,484	65,484	210,486	364,843
Sound Pressure Level [dB] *		Min	22	26	21	27	29
Sound Pressure Level [dB] *		Max	23	30	27	32	35
Ambient Sound Pressure Level – Leq [dBA] **		Min	43	43	44	54	57
Ambient Sound Pressure Level – Leq [dBA] **		Max	47	48	49	59	57
Duct [in]			5″	6″	8″	10″	–
Weight	Kg		7	7	7,5	14	24
Weight	lbs		15,432	15,432	16,534	30,864	52,910

*Specifications for 220V/60Hz. Sound pressure level, radiated at 3m in a free field, with ducts at the intake and discharge. 1/3 octave band at 2.5kHz.
** Specifications for 220V/60Hz. Sound pressure level perceived in the environment, radiated at 3m in a free field, with ducts at the intake and discharge.

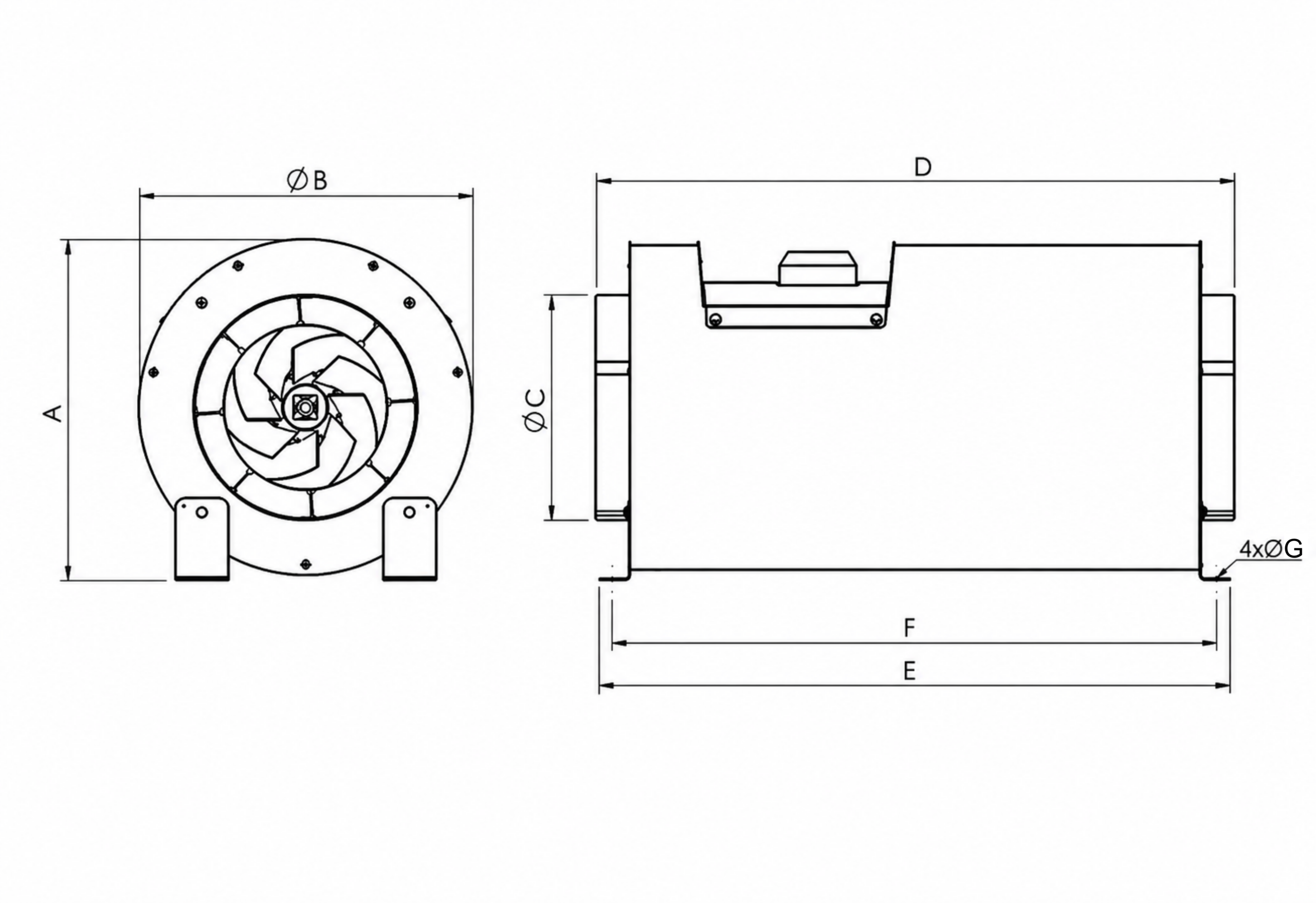

Model	Dimensions [mm]
Model	A	ØB	ØC	D	E	F	ØG
MAXX SS 125	313	308	124	612	623	591	7,5
MAXX SS 150			149
MAXX SS 200			199
MAXX SS 250	378	373	251	767	757	725
MAXX SS 315	455	450	313	942	932	901

Modelos

MAXX SS 125

MAXX SS 150

MAXX SS 200

MAXX SS 250

MAXX SS 315

Download Center

CAD MAXX SUPER SILENCE – 125

CAD MAXX SUPER SILENCE – 150

CAD MAXX SUPER SILENCE – 200

CAD MAXX SUPER SILENCE – 250

CAD MAXX SUPER SILENCE – 315

Technical Specificacions Maxx Super Silence

Frequently Asked Questions

What is an exhaust fan used for?

The main function of an exhaust fan is to extract gases and vapors from the environment, providing indoor air renewal.

What do I need to know before purchasing an exhaust fan for my environment?

When purchasing your exhaust fan, remember to check the unit’s dimensions and the manufacturer’s installation guidelines.

Can I use more than one exhaust fan in the same duct to increase the power?

To increase airflow, it is necessary to install one exhaust fan next to another, duplicate the ductwork, or use an exhaust fan with a higher airflow capacity. To increase pressure, the exhaust fans must be installed one behind the other.

How do I choose the best exhaust fan?

The installation of an exhaust fan must comply with NBR 16401/2008, both in terms of performance, dimensions, and construction characteristics.

A good exhaust system should always provide better air quality while meeting the needs of your environment. If you are unsure which product is best for you, you can contact one of our specialists. We have a specialized team with the technical expertise needed to help you make the best choice.

Can installing an exhaust fan increase my energy costs?

Energy consumption depends largely on the type of exhaust fan and the environment in which it will be installed.

Sicflux exhaust fan lines offer the advantage of providing air quality and thermal comfort without increasing your energy costs.

Where can I install my exhaust fan?

Exhaust fans can be installed in any room where the goal is to provide indoor air renewal, with greater benefits when installed in kitchens and bathrooms. In addition, they are essential for larger environments, such as industrial facilities and commercial establishments.

Can the MDT exhaust fan be left running 24 hours a day, every day?

Yes, the exhaust fan can remain running continuously without reducing its expected service life.

What is the difference between 180 m³/h and 340 m³/h?

The difference is the airflow, which is the amount of air moved by the product. The higher this number, the greater the volume of air it moves, resulting in greater indoor air renewal.
