The Maxx Compact Exhaust Fan line is a complete solution for air renewal in various environments with little or no ventilation. With different models designed to meet specific requirements, the Maxx line provides comfort and air quality for occupants.
Easy Maintenance:
The ability to remove the motor housing without dismantling the entire installation makes maintenance faster and more convenient. This saves time and reduces the inconvenience of extensive disassembly.
If the motor needs to be replaced, the process is also simplified, eliminating the need to modify the entire ductwork.
Installation in Limited Spaces:
The compact design of Maxx exhaust fans allows installation in locations with limited available space, making them ideal for environments with space constraints.
Practicality:
This feature provides greater practicality, as it eliminates the need to dismantle the entire installation for maintenance or motor replacement.
Product Overview

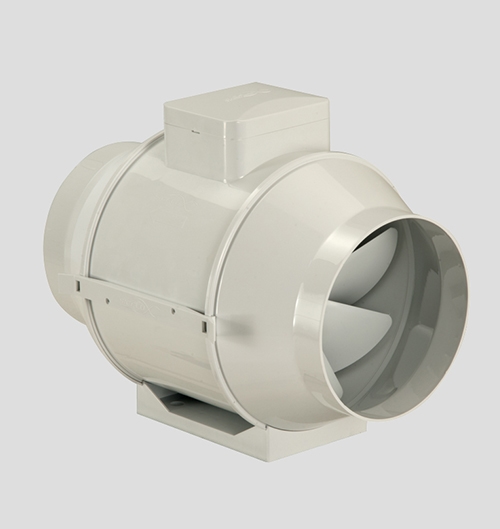

Maxx S Application
Designed to provide air renewal in environments with little ventilation, they can also be used for outdoor air intake and as additional support for range hoods with filters.
Focus: High performance with low noise levels.
Key Features
- Duct design: Its design optimizes airflow in duct systems;
- Ultra-compact design: ideal for limited spaces;
- Durable motor: with ball bearings;
- Flexible installation: in series or parallel;
- Safety: IP X4 – Class II;
- Easy maintenance: access to the motor without disconnecting the duct;
- Thermal protector: to prevent overheating;
- Airflow control: two adjustable speeds;
- Compliance with INMETRO Ordinance 371/2009;
- ETL certification for the USA and Canada (100 to 200/115V);
- Appearance: white color;
- Warranty: 1 year.
Especificações Técnicas
| MAXX S | MODEL | ||||
|---|---|---|---|---|---|
| Frequency | 50 / 60 Hz | 100 | 125 | 150 | 200 |
| Maximum Airflow | m³/h | 161 | 299 | 480 | 902 |
| CFM | 95 | 176 | 282 | 531 | |

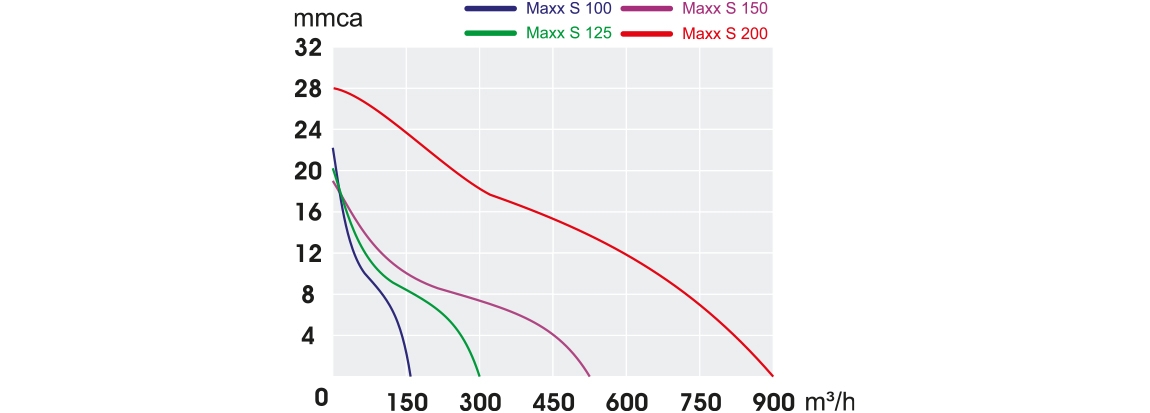

| Maximum Pressure | mmWG | 22 | 20 | 19 | 28 |
| In. W.G | 0,866″ | 0,787″ | 0,748″ | 1,102″ | |
| Single-Phase Voltage [V] | 220 V | ||||
| Total Power Consumption [W] | – | – | – | – | – |
| 220 V | 33,0 | 31,0 | 36,0 | 38,0 | |
| Sound Pressure Level [dB] * | 31 | 30 | 32 | 40 | |
| Ambient Sound Pressure Level – Leq [dBA] ** | – | – | – | – | |
| Speed [rpm] | – | – | – | – | |
| Duct [in] | 4″ | 5″ | 6″ | 8″ | |
| Weight | Kg | 2,97 | 2,98 | 2,99 | 3,00 |
| lbs | 6,55 | 6,57 | 6,59 | 6,61 | |
** Specifications for 220V/60Hz. Sound pressure level perceived in the environment, radiated at 3m in a free field, with ducts at the intake and discharge.
Modelos
| Model | Dimensions | |||
| A | B | C | D | |
| MAXX 100 | 96 | 299 | 249 | 218 |
| MAXX 125 | 123 | |||
| MAXX 150 | 148 | |||
| MAXX 200 | 197 | |||
