The Maxx Compact Exhaust Fan line is a complete solution for air renewal in various environments with little or no ventilation. With different models designed to meet specific requirements, the Maxx line provides comfort and air quality for occupants.
Easy Maintenance:
The ability to remove the motor housing without dismantling the entire installation makes maintenance faster and more convenient. This saves time and reduces the inconvenience of extensive disassembly.
If the motor needs to be replaced, the process is also simplified, eliminating the need to modify the entire ductwork.
Installation in Limited Spaces:
The compact design of Maxx exhaust fans allows installation in locations with limited available space, making them ideal for environments with space constraints.
Practicality:
This feature provides greater practicality, as it eliminates the need to dismantle the entire installation for maintenance or motor replacement.
Sobre o Produto

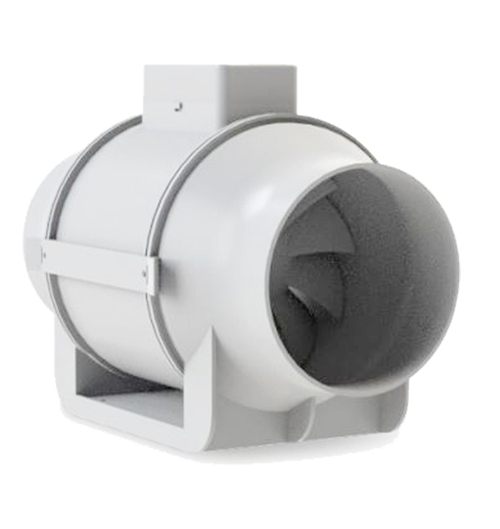

Maxx Mini Applications
Versatile applications: Ideal for line reinforcement in smaller spaces, outdoor air intake, and exhaust in various types of environments.
Focus: Optimizes space without compromising performance.
Key Features:
- Ultra-compact design: ideal for installations with size restrictions;
- Duct design with excellent pressure, airflow, and low noise;
- Durable motor: with ball bearings;
- Flexible installation: in series or parallel;
- Safety: IP X4 – Class II;
- Easy maintenance: access to the motor without disconnecting the duct;
- Thermal protector: to prevent overheating;
- Compliance with INMETRO Ordinance 371/2009;
- ETL certification for the USA and Canada (100 to 200/115V);
- Appearance: white color;
- Warranty: 1 year;
- Dual voltage: 110V or 220V (the only one in its category on the market).
Technical Specifications
| MAXX MINI | MODEL | |||
|---|---|---|---|---|

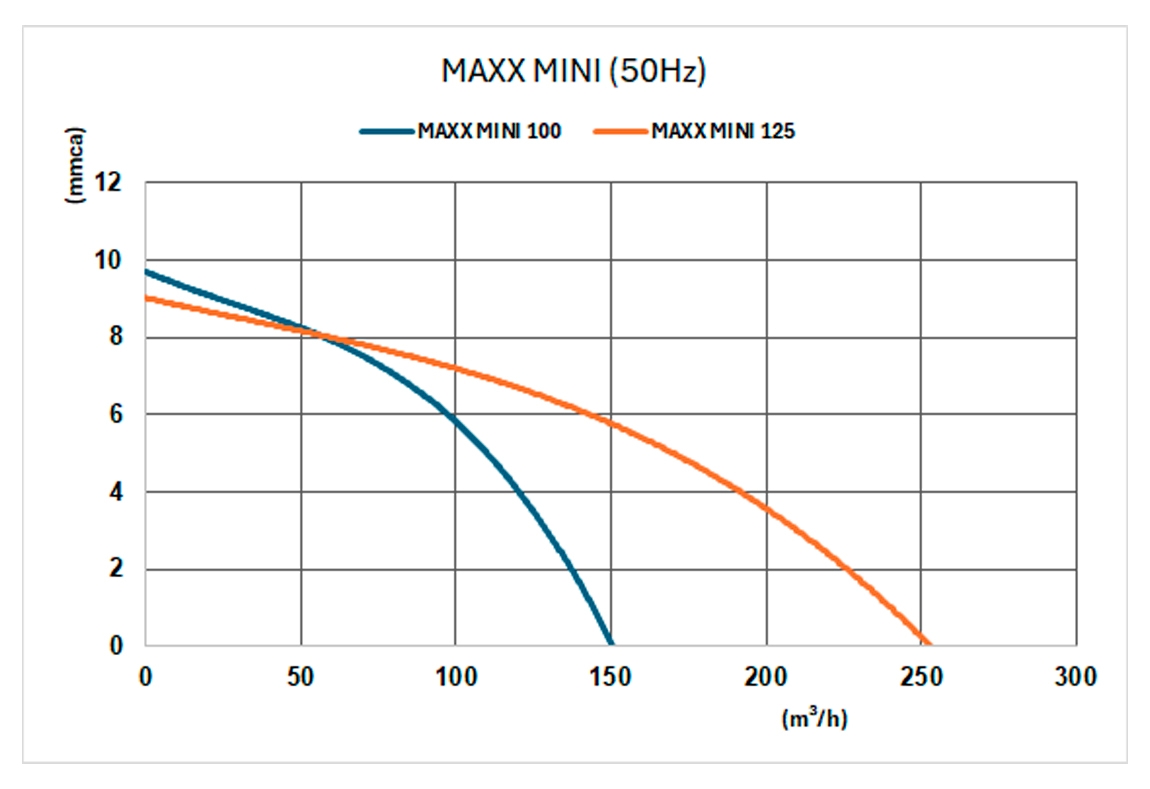

| Frequency | 50 Hz | Speed | 100 | 125 |
| Maximum Airflow | m³/h | – | 151 | 254 |
| CFM | – | 89 | 149 | |
| Maximum Pressure | mmWG | – | 10 | 9 |
| In. W.G | – | 0,394″ | 0,354″ | |

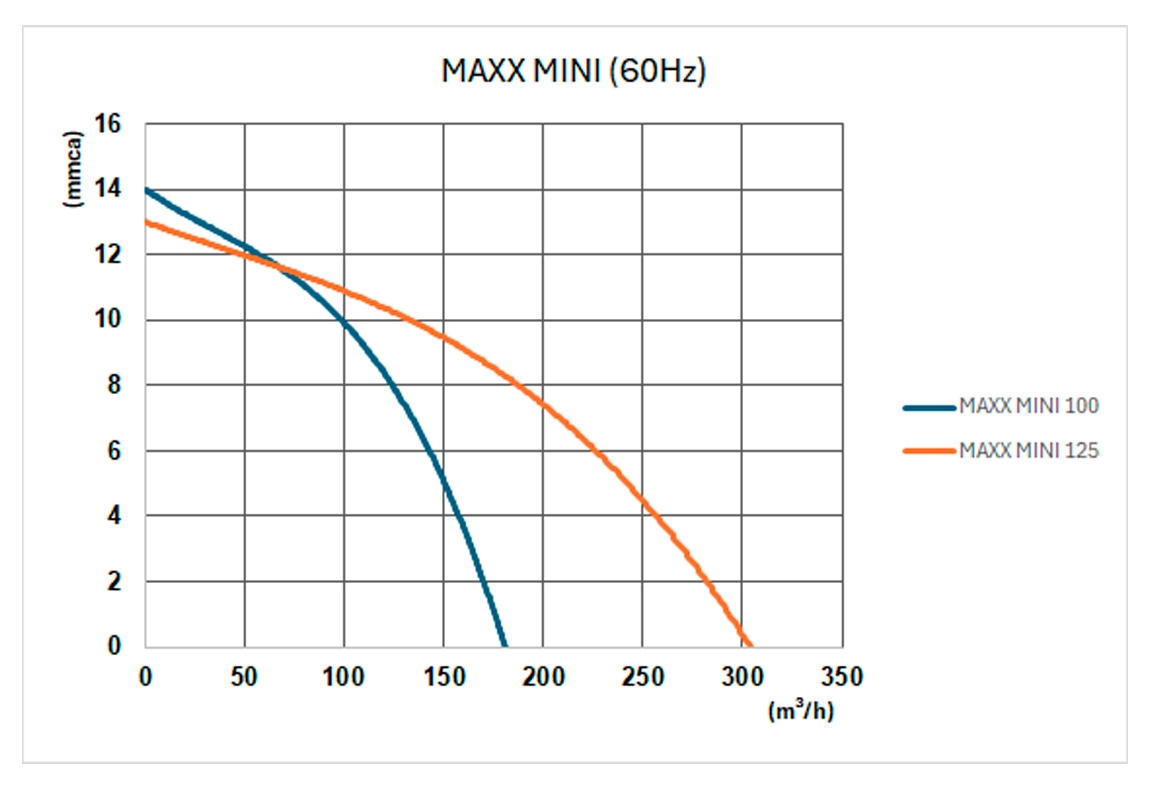

| Frequency | 60 Hz | Velocidade | 100 | 125 |
| Maximum Airflow | m³/h | – | 181 | 305 |
| CFM | – | 106 | 179 | |
| Maximum Pressure | mmWG | – | 14 | 13 |
| In. W.G | – | 0,551″ | 0,512″ | |
| Single-Phase Voltage [V] | 127 / 220 | |||
| Total Power Consumption [W] | 127 V | – | 28 | 28 |
| 220 V | – | 20,6 | 20,6 | |
| Sound Pressure Level [dB] * | – | 27 | 29 | |
| Ambient Sound Pressure Level – Leq [dBA] ** | – | – | – | |
| Speed [rpm] | – | – | – | |
| Duct [in] | – | 4″ | 5″ | |
| Weight | Kg | – | 1,4 | 3 |
| lbs | – | 3,09 | 6,61 | |
** Specifications for 220V/60Hz. Sound pressure level perceived in the environment, radiated at 3m in a free field, with ducts at the intake and discharge.

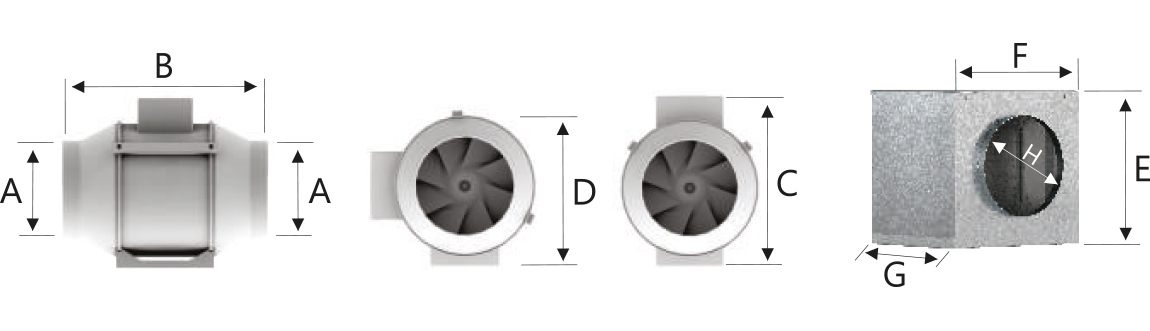

Models
| Model | Dimensions [mm] | |||
|---|---|---|---|---|
| A | B | C | D | |
| MAXX MINI 100 | 96 | 231 | 165 | 148 |
| MAXX MINI 125 | 123 | |||
| Model | Dimensions [mm]] | |||
|---|---|---|---|---|
| E | F | G | H | |
| FILBOX MINI 100 | 153 | 159 | 125 | 94 |
| FILBOX MINI 125 | 128 | |||
