The Maxx Compact Exhaust Fan line is a complete solution for air renewal in various environments with little or no ventilation. With different models designed to meet specific requirements, the Maxx line provides comfort and air quality for occupants.
Easy Maintenance:
The ability to remove the motor housing without dismantling the entire installation makes maintenance faster and more convenient. This saves time and reduces the inconvenience of extensive disassembly.
If the motor needs to be replaced, the process is also simplified, eliminating the need to modify the entire ductwork.
Installation in Limited Spaces:
The compact design of Maxx exhaust fans allows installation in locations with limited available space, making them ideal for environments with space constraints.
Practicality:
This feature provides greater practicality, as it eliminates the need to dismantle the entire installation for maintenance or motor replacement.
Product Overview
Maxx Ion Application
The Maxx Ion air supply fan, together with Filbox filter boxes, supplies fresh, ionized air, reducing indoor air pollution for greater comfort and well-being of occupants.
Focus: Fresh and ionized air supply.
Key Features:
- Duct design: Its design optimizes airflow in duct systems;
- Ultra-compact design: ideal for limited spaces;
- Durable motor: with ball bearings;
- Flexible installation: in series or parallel;
- Safety: IP X4 – Class II;
- Easy maintenance: access to the motor without disconnecting the duct;
- Thermal protector: to prevent overheating;
- Airflow control: two adjustable speeds;
- Warranty: 1 year;
- Compliance with INMETRO Ordinance 371/2009;
- ETL certification for the USA and Canada (100 to 200/115V);
- Appearance: white color.
Technical Specifications
| MAXX S | MODEL | ||||
| Frequency | 50 / 60 Hz | 100 | 125 | 150 | 200 |
| Maximum Airflow | m³/h | 161 | 299 | 480 | 902 |
| CFM | 95 | 176 | 282 | 531 | |
| Maximum Pressure | mmWG | 22 | 20 | 19 | 28 |
| In. W.G | 0,866″ | 0,787″ | 0,748″ | 1,102″ | |
| Single-Phase Voltage [V] | 220 V | ||||
| Total Power Consumption [W] | – | – | – | – | – |
| 220 V | 33,0 | 31,0 | 36,0 | 38,0 | |
| Sound Pressure Level [dB] * | 31 | 30 | 32 | 40 | |
| Ambient Sound Pressure Level – Leq [dBA]** | – | – | – | – | |
| Speed [rpm] | – | – | – | – | |
| Duct [in] | 4″ | 5″ | 6″ | 8″ | |
| Weight | Kg | 2,97 | 2,98 | 2,99 | 3 |
| lbs | 6,55 | 6,57 | 6,59 | 6,61 | |
*Specifications for 220V/60Hz. Sound pressure level, radiated at 3m in a free field, with ducts at the intake and discharge. 1/3 octave band at 2.5kHz.
** Specifications for 220V/60Hz. Sound pressure level perceived in the environment, radiated at 3m in a free field, with ducts at the intake and discharge.
PERFORMANCE CURVE
Tests for the quantity of ions generated in the environment were conducted in a controlled laboratory, simulating the installation example shown alongside, with ductwork measuring 01, 03, or 06 meters in length. The quantity of ions mentioned in the table refers to the discharge from the duct into the environment, after the ductwork.
| Duct Length (M) | Model | ||||
|---|---|---|---|---|---|
| 100 | 125 | 150 | 200 | ||
| Ions, number of ions/cm² in thousands (x1000) | 01 | 1000 | 1100 | 900 | 950 |
| 03 | 750 | 740 | 680 | 700 | |
| 06 | 400 | 400 | 360 | 380 | |

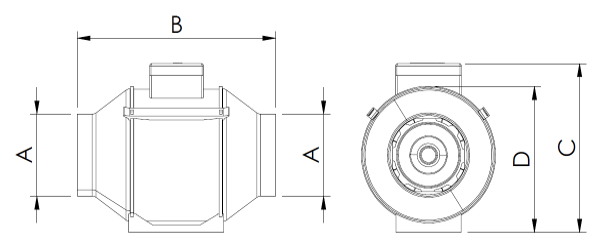

Models
| Model | Dimensions [mm] | |||
| A | B | C | D | |
| MAXX ION 100 | 96 | 299 | 249 | 218 |
| MAXX ION 125 | 123 | |||
| MAXX ION 150 | 148 | |||
| MAXX ION 200 | 197 | |||
