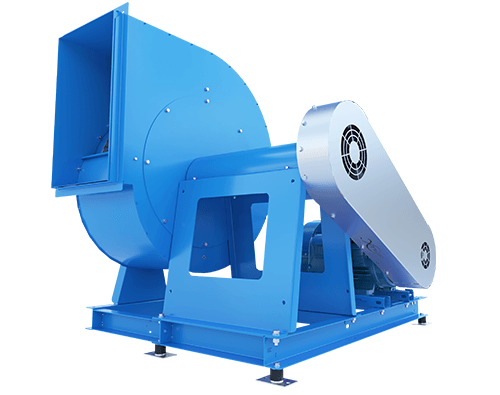

The Titan FS line consists of single-inlet centrifugal fans, featuring a Sirocco impeller made of stamped galvanized steel sheet and a casing made of galvanized steel sheet. It features a reinforced structure, a reinforced belt guard, and direct or indirect drive options, depending on the construction arrangement.
The line offers models with airflow rates of up to 32,500 m³/h and pressures of up to 98 mmCA, meeting air movement requirements according to the characteristics of each project.
About the Product
Main Features
- Type: single-inlet centrifugal fan.
- Manufacturing Material: Sirocco impeller made of stamped galvanized steel sheet and casing made of galvanized steel sheet.
- Structure: reinforced.
- Drive: direct or indirect.
- Impeller Balancing: dynamically balanced for improved performance, in accordance with ISO 1940.
- Belt Guard: reinforced.
- Motors: available in single-phase or three-phase versions.
- Bearing Outside the Airflow: arrangements 1 and 9.
- Bearing in the Airflow: arrangement 3.
- Direct Drive: arrangement 4.
- Airflow Rate: models with airflow rates of up to 32,500 m³/h.
- Pressure: models with pressures of up to 98 mmCA.
Optional Features / Accessories
Painted equipment.
Protective screen.
Inspection door.
Vibration dampers.
Flexible connection.
Gravity dampers.
Drain.
Technical Specifications
| Model | Size | Arrangement | Class | Positions |
|---|---|---|---|---|
| Titan FS | 277 a 710 | 1, 4 OU 9 | I,II | Clockwise or counterclockwise at 0°, 45°, 90°, 135°, 180°, 225°, 270°, or 315° |
| Motor in positions W and Z. | ||||
Models

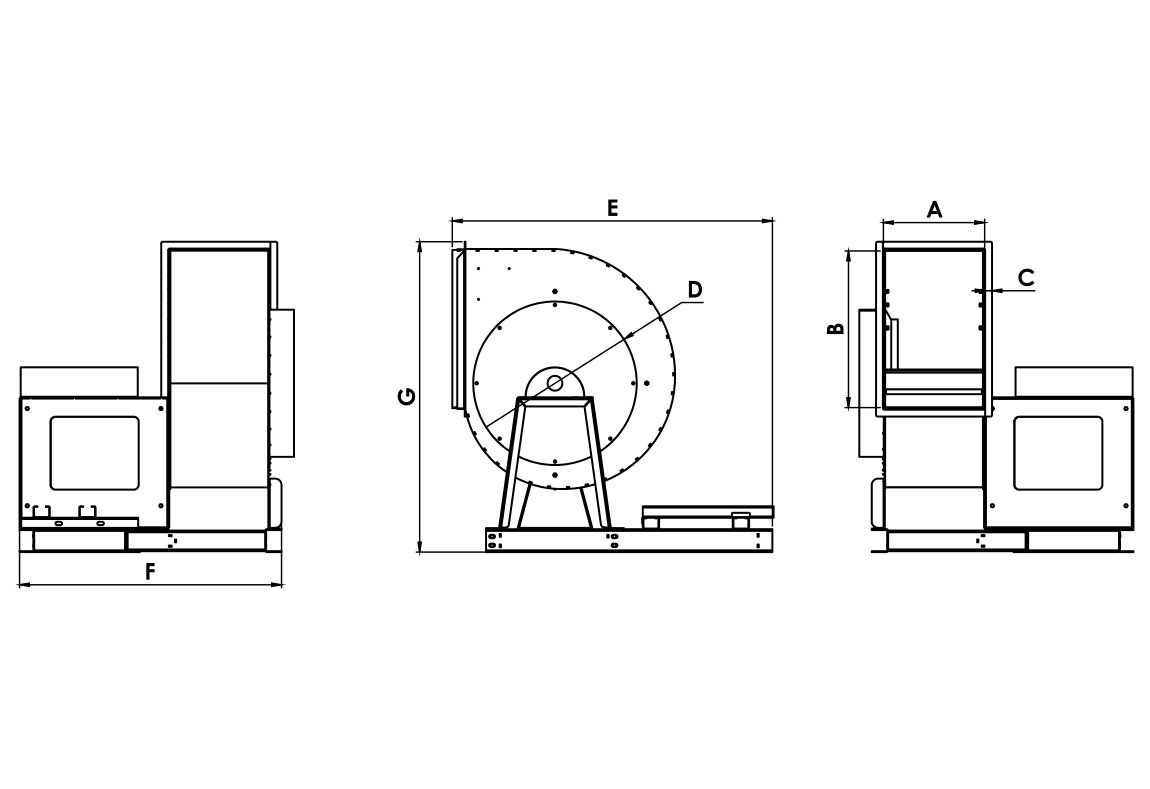

| Model | Dimensions (mm) | Weight [kg] | |||||
|---|---|---|---|---|---|---|---|
| A | B | C | D | E | F | ||
| 227 | 187 | 295 | 40 | 340 | 459 | 453 | 10 |
| 317 | 245 | 349 | 40 | 375 | 552 | 540 | 15 |
| 377 | 252 | 403 | 40 | 440 | 581 | 620 | 20 |
| 457 | 299 | 478 | 40 | 500 | 743 | 753 | 70 |
| 500 | 400 | 630 | 40 | 560 | 752 | 803 | 75 |
| 560 | 483 | 710 | 40 | 620 | 917 | 994 | 85 |
| 630 | 500 | 725 | 40 | 720 | 1020 | 1060 | 100 |
| 710 | 555 | 900 | 40 | 780 | 1184 | 1259 | 115 |
