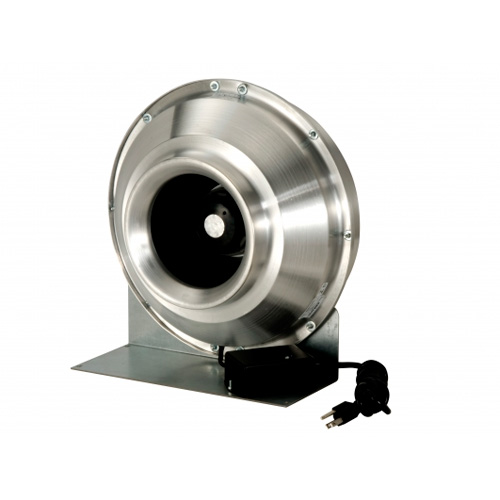

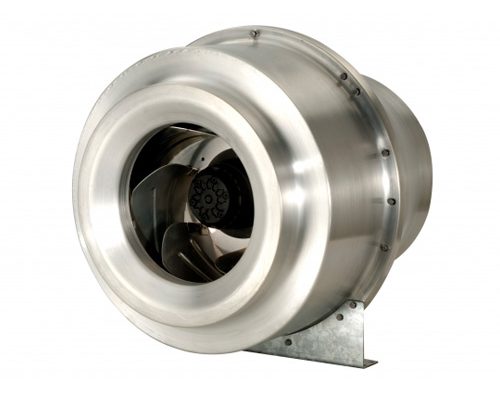

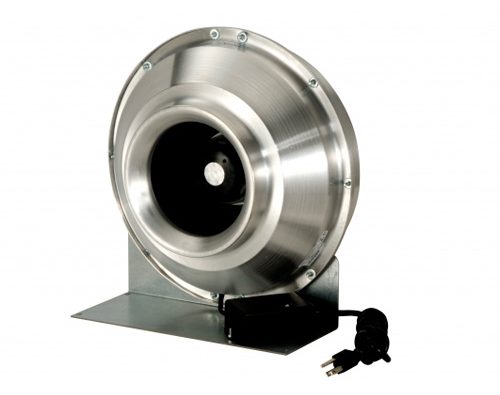

The ACI Line exhaust fans are ideal for air extraction or supply in large environments. Their versatility allows multiple outlets or air intakes in the same environment, operating with high airflow and high radial pressure, while also serving as boosters in extensive installations. Equipped with a motor with ball bearings and an aluminum housing, they ensure maximum efficiency, durability, and continuous performance.
Product Overview
Key Features:
In-Line Operation: Designed to operate along the ductwork.
High Radial Performance: Provides high airflow and high pressure for robust performance.
Aluminum Housing: Exclusive aluminum construction, providing light weight, high resistance, and durability.
Versatile Installation: Can be installed in either vertical or horizontal positions.
Professional Motor: Equipped with ball bearings for smooth operation and an estimated service life of 40,000 hours (under proper operating conditions).
Enhanced Safety: Motor thermal protection, IPX4 protection rating (resistance to water splashes), and Class I insulation (grounding required).
Included Junction Box: Facilitates electrical wiring connections.
Certifications: INMETRO certified and certified for the USA and Canada (models from 100 Mini to 355/115V).
Warranty: 1 Year.
Available Options
Multitimer 3x: Fan control from multiple points.
Anti-Mold Module: Provides scheduled air renewal in the environment.
Silencius Module: Reduces the noise level in the environment.
Timer: Timer for continuous operation.
Technical Specifications
| ACI | MODEL | |||||||||
|---|---|---|---|---|---|---|---|---|---|---|
| 100 mini | 100 | 125 | 150 | 200 | 250 | 315 | 355 | 400 | ||
| Frequency | 50Hz | |||||||||
| Maximum Airflow | m³/h | 196 | 256 | 363 | 520 | 803 | 985 | 1635 | 1934 | 2903 |
| CFM | 115 | 151 | 214 | 306 | 472,565 | 580 | 962 | 1.138,159 | 1708 | |
| Maximum Pressure | mmWG | 17 | 29 | 30 | 48 | 52 | 42 | 60 | 28 | 53 |
| In. W.G | 0,669 “ | 1,142 “ | 1,181 “ | 1,890 “ | 2,047″ | 1,654 “ | 2,362 “ | 1,102″ | 2,087 “ | |
| Frequency | 60Hz | 100 mini | 100 | 125 | 150 | 200 | 250 | 315 | 355 | 400 |
| Maximum Airflow | m³/h | 225 | 275 | 390 | 560 | 865 | 1080 | 1700 | 2210 | 3200 |
| CFM | 132 | 162 | 230 | 330 | 509 | 636 | 1000 | 1300 | 1883 | |
| Maximum Pressure | mmWG | 22 | 34 | 35 | 56 | 60 | 50 | 65 | 37 | 65 |
| In. W.G | 0,866 “ | 1,339 “ | 1,378 “ | 2,205 “ | 2,362″ | 1,969 “ | 2,559 “ | 1,456″ | 2,559 “ | |
| Single-Phase Voltage [V] | 127 / 220 | 127 / 220 | 220 | |||||||
| Total Power Consumption [W] | 127 V | 11,899 | 25,439 | 25,439 | 44,723 | 43,082 | 90,268 | 117,349 | 144,840 | 584,685 |
| 220 V | 27,129 | 58 | 58 | 101,969 | 98,227 | 205,809 | 267,552 | 330,230 | ||
| Sound Pressure Level [dB] * | 34 | 33 | 38 | 46 | 50 | 51 | 58 | 41 | 49 | |
| Ambient Sound Pressure Level – Leq [dBA] ** | 45 | 51 | 50 | 61 | 62 | 68 | 74 | 61 | 69 | |
| Speed (rpm) | 2.550 | 2.600 | 2.600 | 2.650 | 2.650 | 2.850 | 2.550 | 1.500 | 2.475 | |
| Duct (in) | 4 | 4 | 5 | 6 | 8 | 10 | 12 | 14 | 16 | |
| Weight | Kg | 2 | 3,140 | 3,140 | 4,360 | 4,360 | 5,160 | 6,860 | 10,500 | 22,500 |
| lbs | 4,409 | 6,922 | 6,922 | 9,612 | 9,612 | 11,375 | 15,123 | 23,148 | 49,603 | |
** Specifications for 220V/60Hz. Sound pressure level perceived in the environment, radiated at 3m in a free field, with ducts at the intake and discharge.
Models
| MODEL | Dimensional (mm) | ||||
|---|---|---|---|---|---|
| A | B | C | D | E | |
| ACI 100 MINI | 227 | 99 | 273 | 30 | 30 |
| ACI 100 | 305 | 99 | 255 | 28 | 30 |
| ACI 125 | 305 | 125 | 255 | 28 | 30 |
| ACI 150 | 400 | 150 | 310 | 28 | 30 |
| ACI 200 | 400 | 199 | 310 | 30 | 30 |
| ACI 250 | 400 | 250 | 310 | 30 | 30 |
| ACI 315 | 470 | 315 | 285 | 30 | 30 |
| ACI 355 | 520 | 355 | 480 | 40 | 50 |
| ACI 400 | 630 | 400 | 610 | 30 | 50 |
