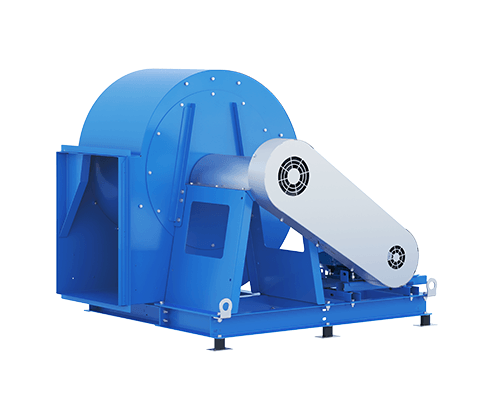

The Titan LS centrifugal fans/exhaust fans are Limit Load type units, designed with backward-inclined straight blades and a single-inlet configuration, ensuring efficiency, low noise levels, and superior reliability.
These fans are designed for flexibility and high performance, meeting a wide range of industrial needs and offering customized solutions for different applications, including Industrial HVAC; Emissions Control; Fire Safety; Cleanrooms; Industrial Exhaust; Kitchen Exhaust; and Power Generation.
Titan LS fans feature a universal scroll casing design. This innovation allows the fan to adapt to any air discharge position, streamlining manufacturing and providing the flexibility to change the position at the installation site without difficulty.
They are designed to extract large volumes of air from an environment, using natural or forced air intake to promote air renewal.

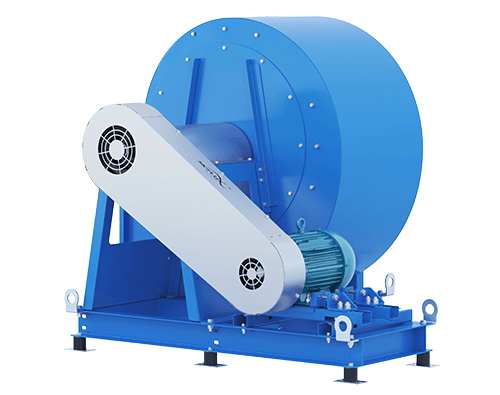

They offer belt-driven or direct-drive options, with the motor and casing positions adjustable according to the installation requirements.
About the Product
Main Features
✲ Backward-inclined straight blades made of 1020 steel.
✲ Scroll casing structure made of galvanized 1020 steel sheet.
✲ Efficiency of up to 81%.
✲ Casing with Pittsburgh seam construction.
✲ Reinforced belt guard.
✲ Models with airflow rates from 500 to 50,000 m³/h and pressures from 20 to 350 mmCA.
✲ Dynamically balanced impellers in accordance with ISO 21940.
✲ Painted equipment for enhanced protection.
✲ Bearings located outside the airflow (arrangements 1 and 9) or within the airflow (arrangement 3), with direct drive (arrangement 4).
Optional Items
✲ Flexible connector at the discharge and/or inlet to isolate vibrations.
✲ Protective screen at the air intake.
✲ Inspection door.
✲ Vibration dampers.
✲ Drain.
✲ Gravity dampers.
✲ Finish options: unpainted, acrylic paint, polyurethane paint (UV-resistant), and epoxy coating (resistant to salt-laden environments).
Technical Specifications
| Model | Size | Arrangement | Class | Positions |
|---|---|---|---|---|
| Titan LS | 200 a 1250 | 1, 3, 4 OU 9 | I,II,III e IV | Clockwise or counterclockwise at 0°, 45°, 90°, 135°, 180°, 225°, 270° or 315° |
| Motor in positions W and Z. | ||||

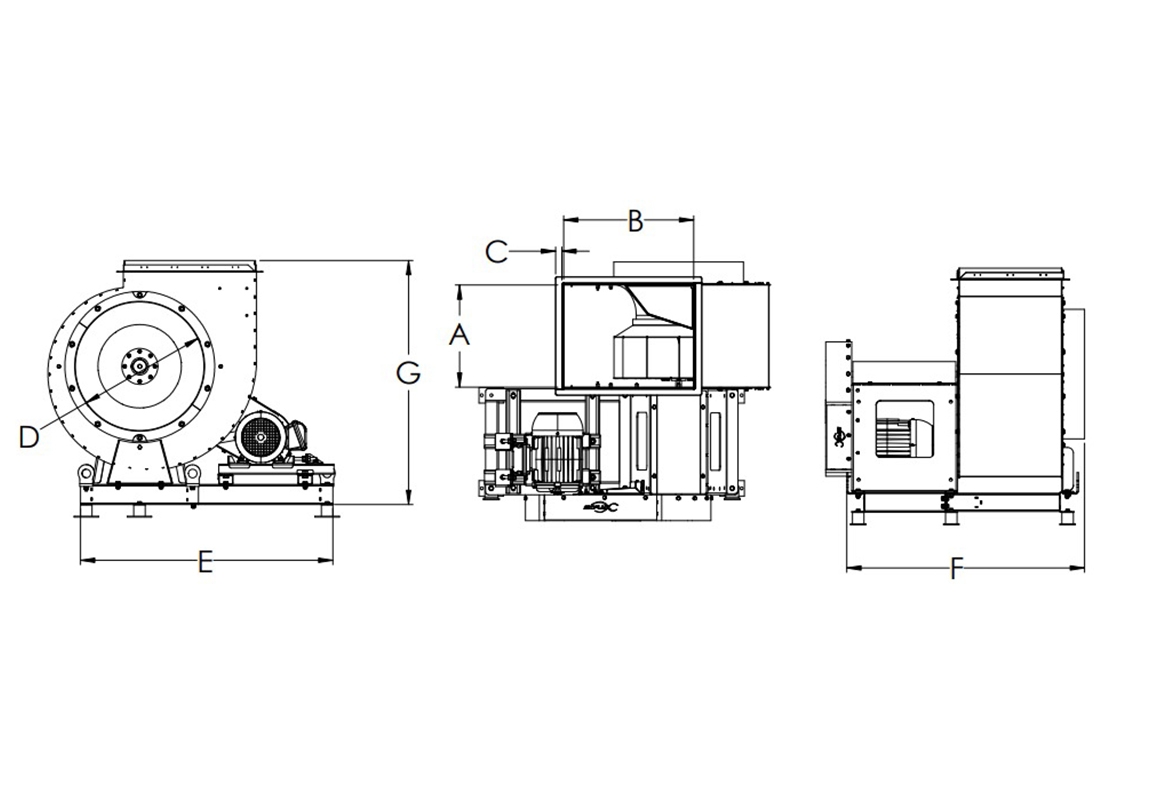

Modelos
| Model | Dimensions (mm) | Weight (kg) | ||||||
|---|---|---|---|---|---|---|---|---|
| A | B | C | D | E | F | G | ||
| 200 | 160 | 200 | 35 | 200 | 650 | 530 | 515 | 25 |
| 224 | 180 | 224 | 35 | 224 | 680 | 550 | 575 | 28 |
| 250 | 200 | 250 | 35 | 250 | 720 | 570 | 640 | 32 |
| 280 | 224 | 280 | 35 | 280 | 780 | 600 | 720 | 45 |
| 315 | 250 | 315 | 35 | 315 | 856 | 636 | 740 | 52 |
| 355 | 280 | 355 | 35 | 355 | 856 | 715 | 835 | 58 |
| 400 | 315 | 400 | 40 | 400 | 1076 | 760 | 915 | 65 |
| 450 | 355 | 450 | 40 | 450 | 1076 | 840 | 1000 | 98 |
| 500 | 400 | 500 | 40 | 500 | 1276 | 940 | 1100 | 120 |
| 560 | 450 | 560 | 40 | 560 | 1276 | 1000 | 1240 | 135 |
| 630 | 500 | 630 | 40 | 630 | 1376 | 1060 | 1400 | 160 |
| 710 | 560 | 710 | 40 | 710 | 1680 | 1215 | 1650 | 195 |
| 800 | 630 | 800 | 40 | 800 | 1680 | 1282 | 1712 | 252 |
| 900 | 710 | 900 | 40 | 900 | 2100 | 1440 | 1926 | 300 |
| 1000 | 800 | 1000 | 40 | 1000 | 2335 | 1600 | 2140 | 340 |
