Very quiet two speeds AC motor fan for ceiling or wall mounted hold.
Low speed runs continuously (Adjustable 0, 30CFM – Max CFM).
ETL evaluated and confirm to UL and cUL safety standards.
About the Product

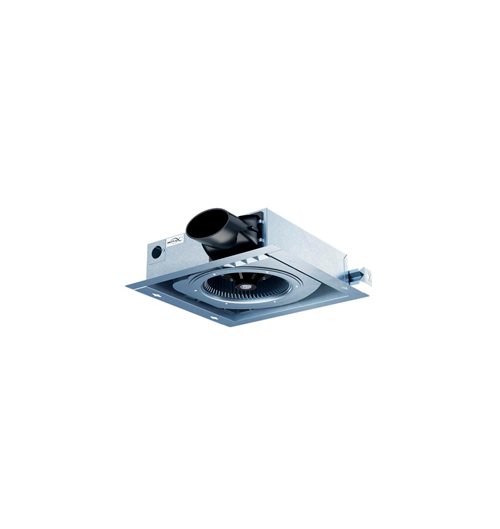

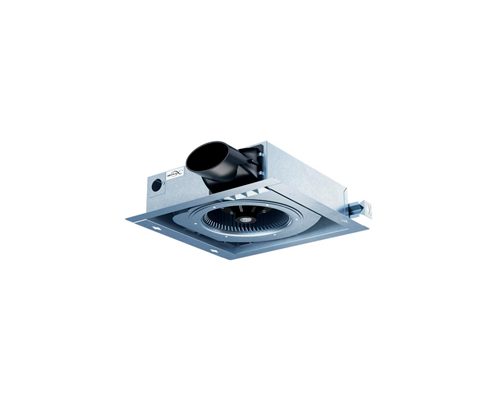

Housing:
✲ Made of rugged 26 GA galvanized steel;
✲ Detachable 4 inch polymeric collar which includes a light weight built in back draft damper
✲ Housing size: 10-1/4″x10-1/4″x3-3/8.
Motor/Blower:
✲ Total enclosed bushless DC motor designed to operate continuously.
✲ Power rating should be 120 volts and 60/50Hz;
✲ Comes with a built in overload disconnect for safety and longer motor life.

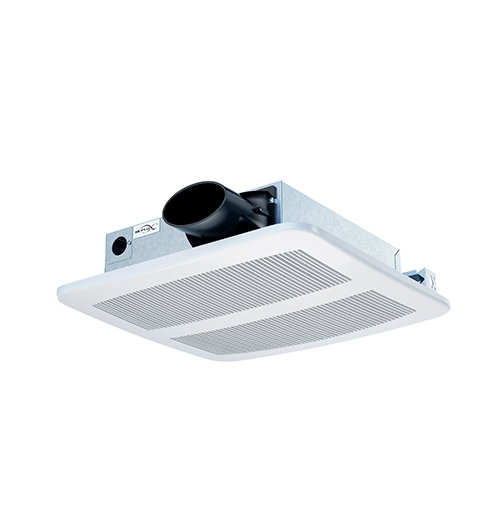

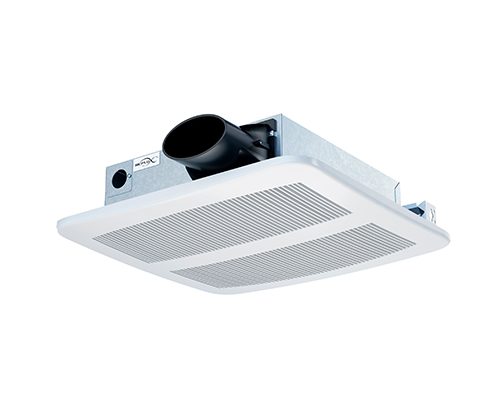

Grille:
✲ The grille is low profile that has elegance and still able to maintain its simplicity.
✲ Grille dimension: 13″x13 3/4.
Typical specification:
✲ Ceiling ventilador shall have corrosion resistance galvanized steel.
✲ Continuous adjustable low speed operation allows accurate CFM sellection.
✲ Built in toggle switch for high speeds (50CFM/80CFM/100CFM) selection.
✲ Blower assembly shall be removable, have a centrifugal type blower wheel and a permanently lubricated motos designed for continuous operation.
✲ Includes an attachable non metallic collar with build in back draft damper.
✲ Air and sound delivery shall meet the ENERGY STAR.
Technical Specifications
Technical specifications for 230 V / 60 Hz.
| Model Number | 50CFM | 80CFM | 100CFM | |||
|---|---|---|---|---|---|---|
| Static Pressure in Inches W.G | 0.1 | 0.25 | 0.1 | 0.25 | 0.1 | 0.25 |
| Air Volume (CFM) | 50 | 50 | 80 | 80 | 100 | 100 |
| Noise (sones) | 0.6 | N/A | 1.0 | N/A | 1.5 | N/A |
| Fan Watts | 12W | |||||
| Duct Diameter | 4″ | |||||
| Power Rating (V/Hz) | 120/60 | |||||
