MAXX Exhaust Fan

    The MAXX Compact Exhaust Fan line is a complete solution for air renewal in various environments with little or no ventilation. With different models designed to meet specific requirements, the MAXX line provides comfort and air quality for occupants.

    Practicality: Ensures maximum operational efficiency without complex assembly/disassembly requirements during preventive or corrective maintenance.

    Easy Maintenance: The ability to remove the motor housing without dismantling the entire installation makes maintenance faster and more convenient, saving time and reducing the inconvenience of extensive disassembly. If the motor needs to be replaced, the process is also simplified, eliminating the need to modify the ductwork.

    Installation in Limited Spaces: The compact design of MAXX exhaust fans allows installation in locations with limited available space, making them ideal for environments with space constraints.

    Buy now!
    Request a Quote

    Product Overview

    Application and Focus

    • Application: Ideal for boosting airflow in long duct runs, ensuring a constant and powerful airflow. Its external air intake capability makes it a versatile solution for various needs and also an excellent booster for filter hoods, optimizing exhaust performance and keeping the environment free from odors and impurities.
    • Focus: High pressure and high airflow for large environments.

    Key Features

    • Duct Design: Optimized design to maximize airflow in duct systems.
    • Compact Design: Ideal for installations in limited spaces.
    • Durable Motor: Equipped with ball bearings for extended service life.
    • Flexible Installation: Can be installed in series or in parallel.
    • Enhanced Safety: IP X4 protection rating and Class II insulation.
    • Thermal Protector: Prevents motor overheating.
    • Airflow Control: Two adjustable speeds.
    • Easy Maintenance: Full access to the motor without the need to disconnect the duct.
    • Certifications and Standards: Compliant with INMETRO Ordinance 371/2009 and ETL certified for the USA and Canada (models 100 to 200 / 115V).
    • Appearance: White color.
    • Warranty: 1 year.

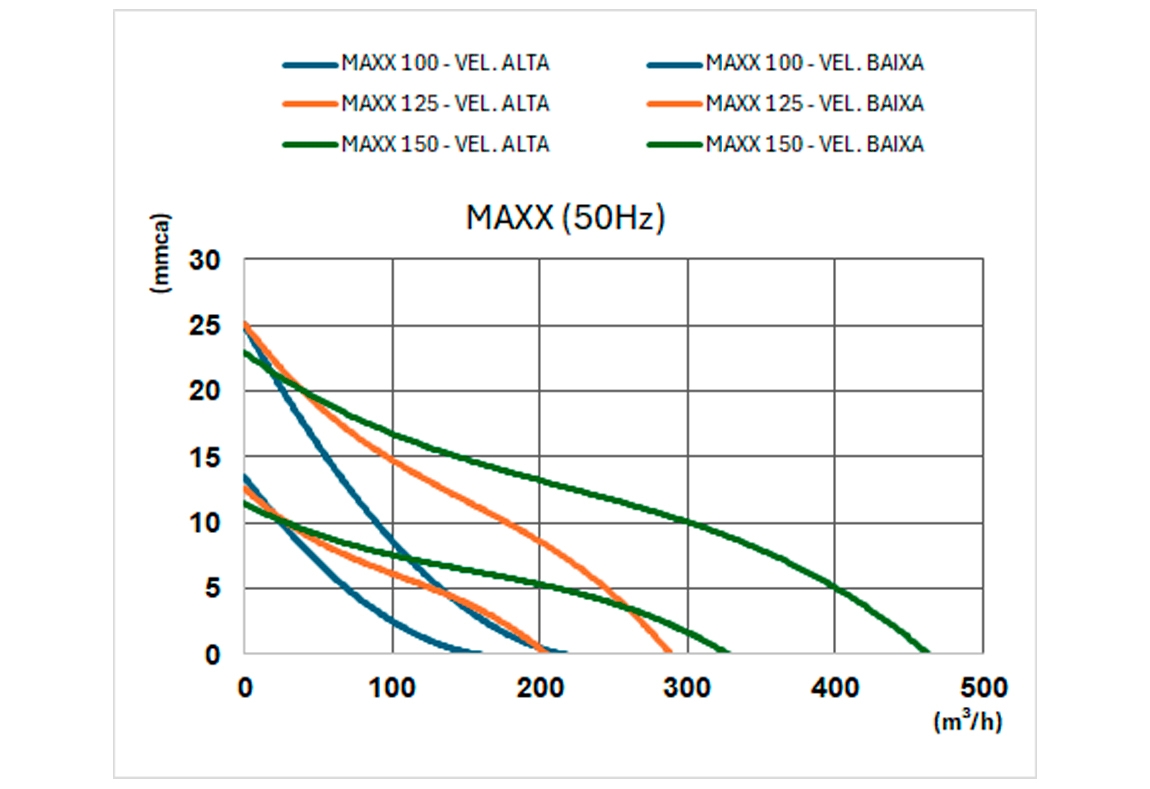

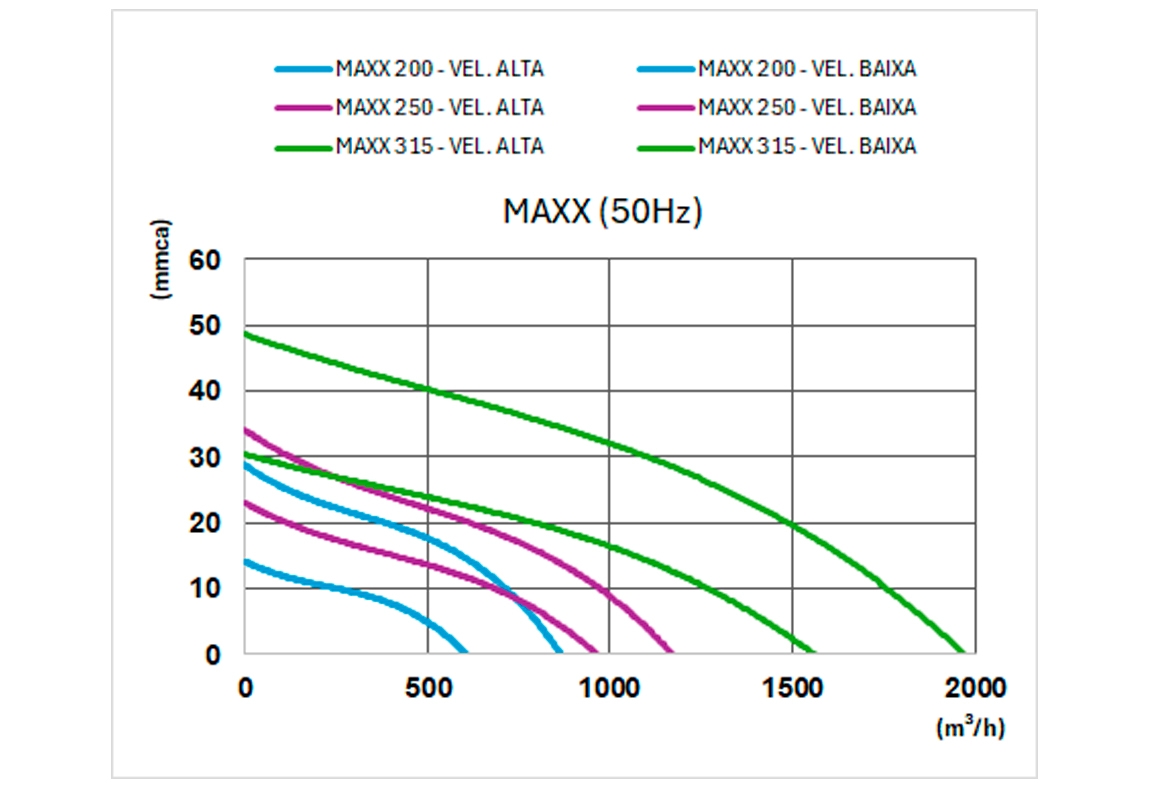

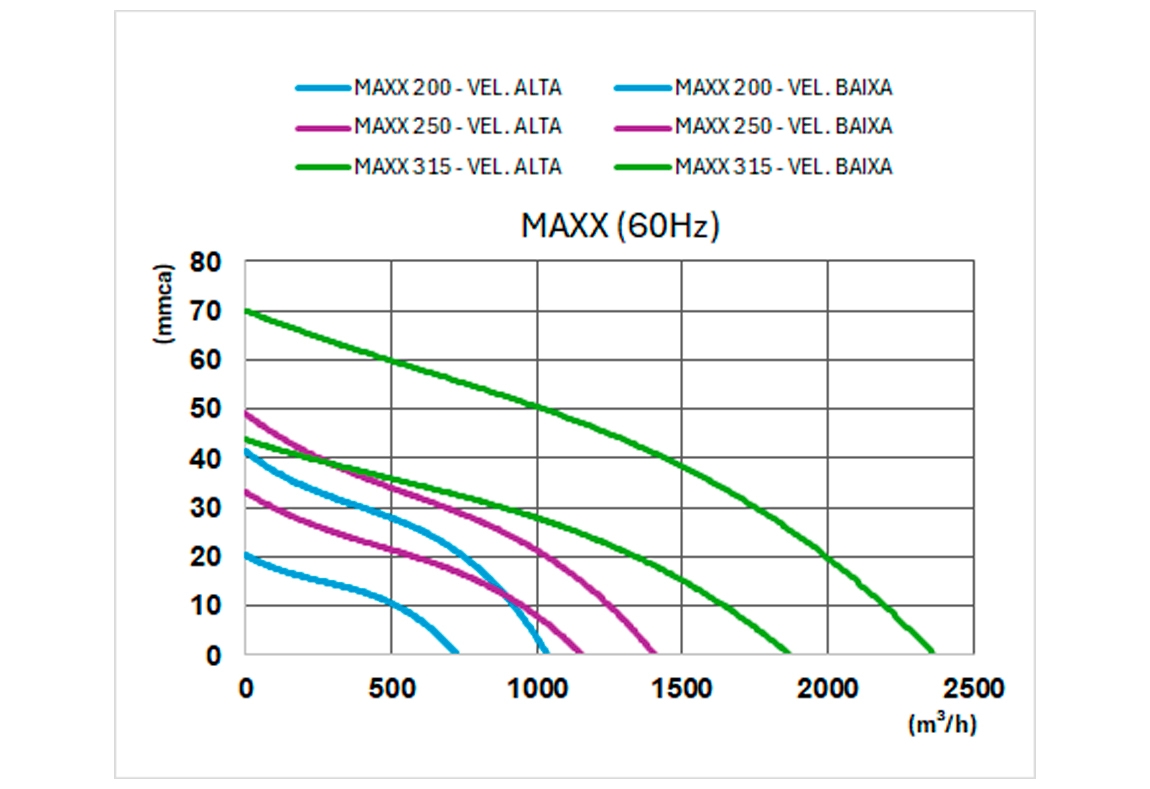

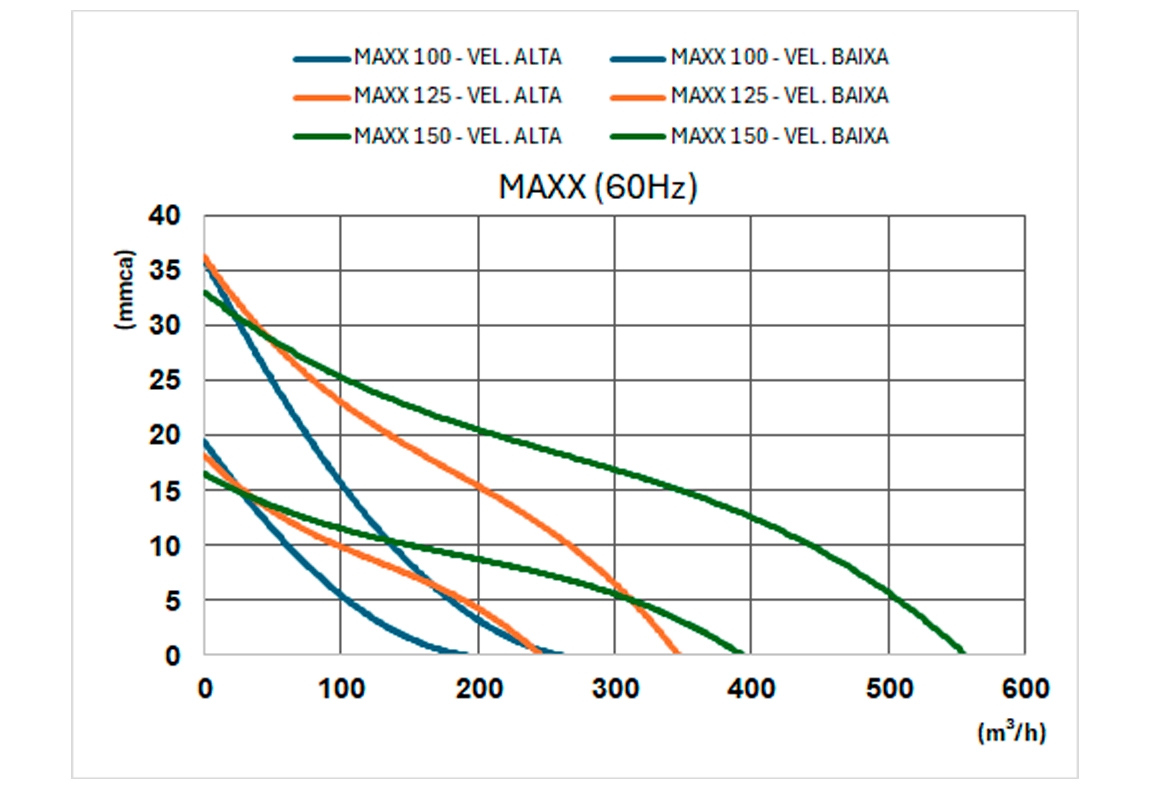

    Technical Specifications

    MAXXMODEL
    Frequency50 Hz100125150200250315
    Maximum Airflowm³/hMin1522043256089631548
    Máx20728746086711711958
    CFMMin89120191358567911
    Máx1221692715106891152
    Maximum PressuremmWGMin131211142330
    Min24,32522283449
    In. W.GMin0,512″0,472″0,433″0,551″0,906″1,181″
    Máx0,957″0,984″0,866″1,102″1,339″1,929″
    Frequency60 Hz100125150200250315
    Maximum Airflowm³/hMin18928546783010641650
    Máx248345552104014052350
    CFMMin111168275488626971
    Máx1462033256128271383
    Maximum PressuremmWGMáx353632414970
    In. W.GMin1,260″1,299″1,063″1,417″1,457″1,693″
    Máx1,378″1,417″1,260″1,614″1,929″2,756″
    Single-Phase Voltage [V]127 / 220220
    Total Power Consumption [W]127 VMin66–––
    Máx88–––
    220 VMin52,4154,4257,3
    Máx72,0210,5364,4
    Sound Pressure Level [dB]*Min353531334141
    Máx404037404649
    Ambient Sound Pressure Level – Leq [dBA] **Min525148496162
    Máx565755556768
    Speed––––––
    Duct [in]4″5″6″8″10″12″
    WeightKg3,03,03,03811
    lbs6,66,66,66,617,624,3

    *Specifications for 220V/60Hz. Sound pressure level, radiated at 3m in a free field, with ducts at the intake and discharge. 1/3 octave band at 2.5kHz.
    ** Specifications for 220V/60Hz. Sound pressure level perceived in the environment, radiated at 3m in a free field, with ducts at the intake and discharge.

    Models

    MAXX 100

    Suitable for bathrooms up to 33 m³

    MAXX 125

    Suitable for bathrooms up to 62 m³

    MAXX 150

    Suitable for bathrooms up to 99 m³

    MAXX 200

    Suitable for bathrooms up to 187 m³

    MAXX 250

    MAXX 315

    MODELDimensional (mm)
    ABCD
    Maxx 10096299249218
    Moxx 125123
    Maxx 150148
    Maxx 200197
    Maxx 250246383338286
    Maxx 315312446410357

    Videos

    Frequently Asked Questions

    The main function of an exhaust fan is to extract gases and vapors from the environment, providing indoor air renewal.

    When purchasing your exhaust fan, remember to check the unit’s dimensions and the manufacturer’s installation guidelines.

    When we talk about inline exhaust fans that operate along the duct, multiple exhaust fans can be installed in series, that is, one behind the other. However, this will only increase the air pressure, not the airflow rate. To increase the airflow rate, it is necessary to install one exhaust fan next to another, use duplicate ductwork, or use an exhaust fan with a higher airflow rate.

    The installation of the exhaust fan must comply with ABNT 14.518/2020, both in terms of performance, dimensions, and construction characteristics.

    A good exhaust system should always provide better air quality while meeting the needs of your environment. If you are unsure which product is best for you, you can contact one of our specialists. We have a specialized team with the technical knowledge required to help you make the best choice.

    Energy consumption depends greatly on the type of exhaust fan and the environment in which it will be installed.

    Sicflux exhaust fan lines offer the advantage of providing air quality and thermal comfort without increasing your energy costs.

    Exhaust fans can be installed in any room where the goal is to promote indoor air renewal, offering greater benefits when installed in kitchens and bathrooms, environments that are more susceptible to airborne bacteria. In addition, they are essential for larger environments, such as industrial facilities and commercial establishments.
