Titan LD

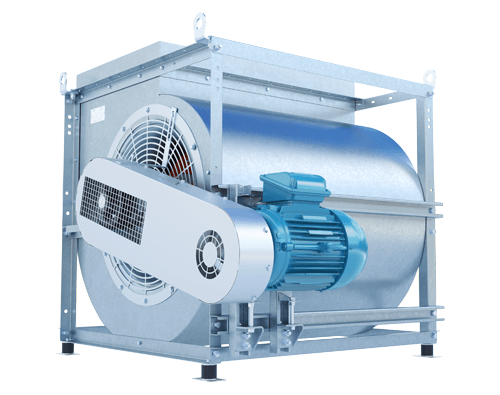

    The Titan LD line consists of centrifugal fans with straight, backward-inclined blades, a casing made of galvanized SAE 1020 steel sheet, and a specially enclosed housing. Its universal casing allows adaptation to different air discharge positions, and the models are available in both single-inlet and double-inlet configurations.

    With an efficiency of up to 81%, the line includes models with airflow rates ranging from 1,000 to 140,000 m³/h and pressures ranging from 20 to 350 mmCA, for applications in industrial HVAC, emissions control, fire safety, and other areas.

    Buy Now!
    Product Page

    About the Product

    *Product without standard paint finish.

    Main Features

    • Manufacturing Material: casing structure made of galvanized SAE 1020 steel sheet.
    • Construction Design: straight, backward-inclined blades.
    • Housing: special enclosure.
    • Construction: universal casing, adaptable to different air discharge positions.
    • Inlet Type: single-inlet and double-inlet.
    • Efficiency: up to 81%.
    • Airflow Rate: models ranging from 1,000 to 140,000 m³/h.
    • Pressure: models ranging from 20 to 350 mmCA.
    • Applications: industrial HVAC, emissions control, fire safety, among others.

    Optional Features / Accessories

    Masonry counterflange and flange.

    Protective screen at the air intake.

    Painted equipment.

    Inspection door.

    Flexible connection.

    Through shaft.

    Vibration dampers.

    Gravity damper.

    Technical Specifications

    ModelSizeArrangementClassPositions
    Titan LD200 a 12503I,II,IIIClockwise or counterclockwise at 0°, 45°, 90°, 135°, 180°, 225°, 270°, or 315°
    *Larger models available upon request.

    Models

    Titan LD 200 a 1000

    ModelDimensions (mm)Weight [kg]
    ABB’ (BLD)CDEF
    2003002002603520038036056
    2243352242853522441540063
    2503752503203525045544570
    2804252803603528050549278
    3154753154003531555554788
    35553035545535355610611100
    40060040051040400794752112
    45067045057040450840831150
    50075050064040500900840168
    5608505607104056011001000185
    6309506308004063012191116195
    71010607109004071013181238230
    800118080010004080014761380260
    900132090011304090016471540405
    100015001000125040100018201671525
    *Dimensions are in millimeters. The weights indicated are approximate and do not include the electric motor.

    Frequently Asked Questions

    The main function of an exhaust fan is to extract gases and vapors from the environment to the outside, providing indoor air renewal.

    When purchasing your exhaust fan, do not forget to check the unit’s dimensions and the manufacturer’s installation instructions.

    A instalação do exaustor de ar deve seguir a norma NBR 16401-2008, tanto na performance, como na dimensão e características construtivas.
    The installation of the exhaust fan must comply with the NBR 16401-2008 standard, both in terms of performance and dimensions and construction characteristics.

    A good exhaust system should always provide better air quality, meeting the needs of your space. If you are unsure which product is best suited to your needs, you can contact one of our specialists. We have a specialized team with the technical knowledge necessary to help you make the best choice.
