Filbox Red Metallic for Maxx Mini

The Filbox Red filter box has been meticulously designed to achieve perfect synergy with the Sicflux Maxx Mini exhaust line, ensuring a precise fit and maximizing airflow for efficient ventilation. It provides high-quality air renewal, keeping the environment fresh and healthy, especially in smaller spaces. Its circular air inlets and outlets simplify the connection with the exhaust fan and ventilation ducts, facilitating installation and optimizing the system. Its metal construction guarantees durability and resistance, making it suitable for use in outdoor environments, where exposure to the elements demands greater protection. The maintenance of the Filbox Red is a simple and quick process, thanks to its access cover that makes filter replacement easy, allowing the filter box to maintain peak performance with minimal effort, ensuring air quality and long-term ventilation system efficiency.

About the Product

Key Features:

Perfect Compatibility: Circular air inlets and outlets for direct connection with SICFLUX ACI and MAXX exhaust fans;
Custom Filtration: G4/M5 and optional versions with activated carbon filter or F8 filter;
Certified Quality: Filters built according to NBR16401 standards;
Simplified Maintenance: Practical access cover for quick and easy filter replacement;
Durability: Robust metal construction for a long lifespan.

Technical Specifications

Specifications for 230V/60Hz
Sound pressure level, radiated at 3m in free field.

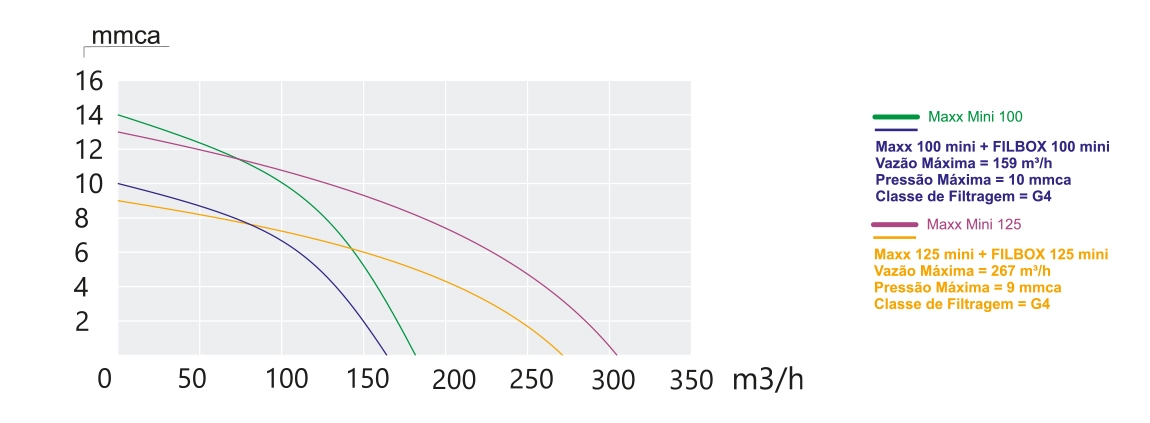

ModelMaximum Flow Rat [m³/h]Maximum Pressure
[mmwc]
Sound
Pressure Level [dBA]
Frequency [Hz]Motor Power [W]Total Absorbed Power [W]Voltage [V]Duct [In]
100181142750/601728/22127/2304″
125305132950/601728/22127/2305″
*Specifications for 230V/60Hz. Sound pressure level, radiated at 3 m in free field, with ducts on the intake and discharge.

Models

MAXX MINI 100

MAXX MINI 125

ModelDimensions [mm/in]Weight [Kg/lbs]
ABCD
Maxx Mini 10096/325/32 231/93/32165/61/2148/553/641,40/3,00
Maxx Mini 125123/427/32
ModelDimensions [mm/in]Weight [Kg/lbs]
EFGH
Maxx Mini 100153/61/32159/617/64125/459/6494/345/640,80/1,80
Maxx Mini 125120/423/32
