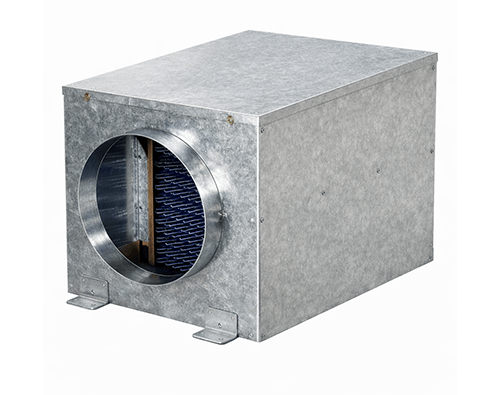

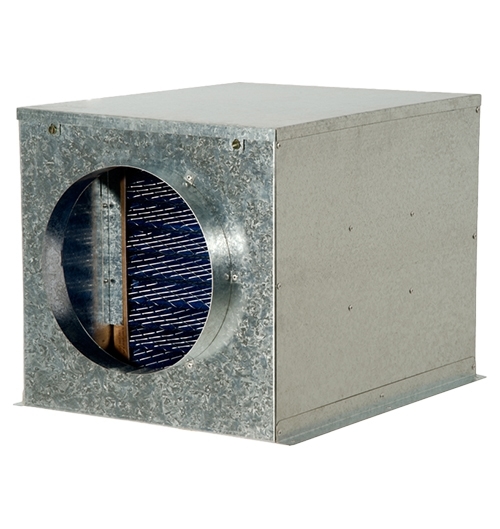

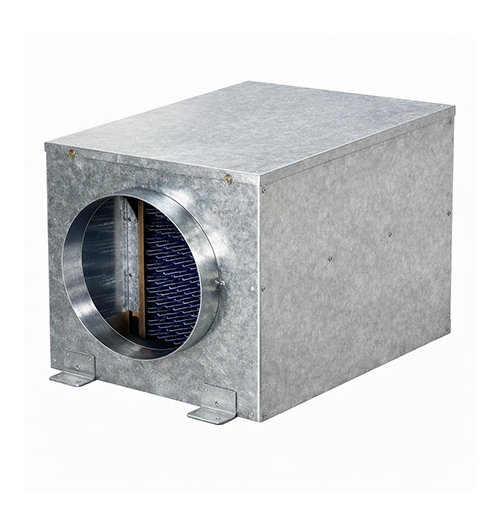

The FILBOX RED filter boxes are the ideal solution for ensuring air quality in conjunction with your SICFLUX ACI and MAXX exhaust fans. Designed for external air intake, our metal boxes offer unmatched robustness, efficiency, and practicality.
Designed for external air intake, they provide perfect compatibility with exhaust fans and ducts and personalized filtration, with options for activated carbon filter or F8 filter, strictly following the NBR 16401 standard. Maintenance is simplified by the practical access cover, ensuring quick and easy filter replacements.
Filtration Version: G4/F8
About the Product
Key Features:
✲ Perfect Compatibility: Circular air inlets and outlets for direct connection with SICFLUX ACI and MAXX exhaust fans;
✲ Custom Filtration: G4/F8 and optional versions with activated carbon filter;
✲ Certified Quality: Filters built according to NBR16401 standards;
✲ Simplified Maintenance: Practical access cover for quick and easy filter replacement;
✲ Durability: Robust metal construction for a long lifespan.
Technical Specifications
| Model | Filtration Class | Filter Area |
|---|---|---|
| FILBOX RED 200 M | G4 / F8 | 0,270 m² |
| FILBOX RED 250 M | G4 / F8 | 0,270 m² |
| FILBOX RED 315 M | G4 / F8 | 0,605 m² |
| FILBOX RED 355 M | G4 / F8 | 0,680 m² |
| FILBOX RED 400 M | G4 / F8 | 1,043 m² |
Models

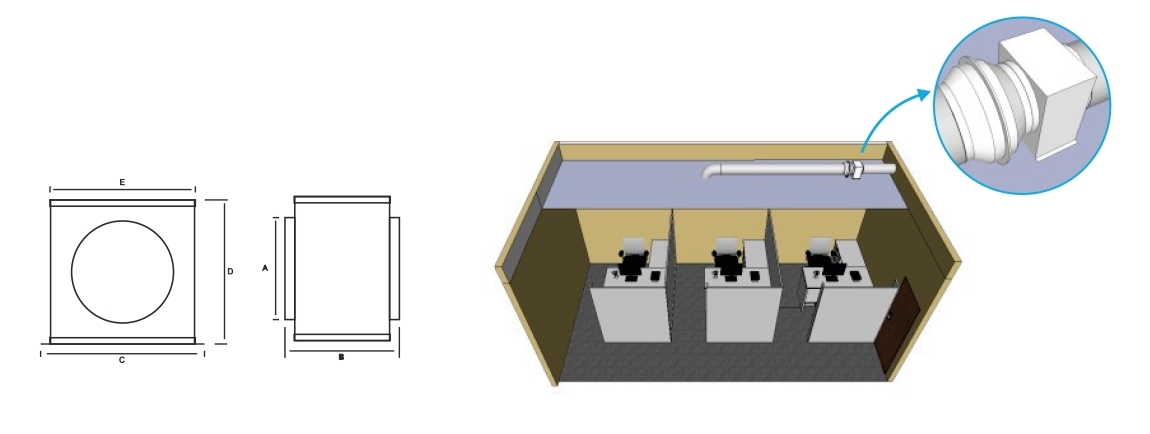

| Model | Dimensions [mm/in] | Weight [Kg/lbs] | ||||
|---|---|---|---|---|---|---|
| A | B | C | D | E | ||
| FILBOX RED 200 | 203 | 238 | 382 | 382 | 386 | 3,0 |
| FILBOX RED 250 | 254 | 238 | 382 | 382 | 386 | 3,2 |
| FILBOX RED 315 | 313 | 287 | 556 | 457 | 559 | 5,1 |
| FILBOX RED 355 | 355 | 287 | 516 | 510 | 519 | 5,8 |
| FILBOX RED 400 | 400 | 287 | 616 | 614 | 619 | 8,1 |
