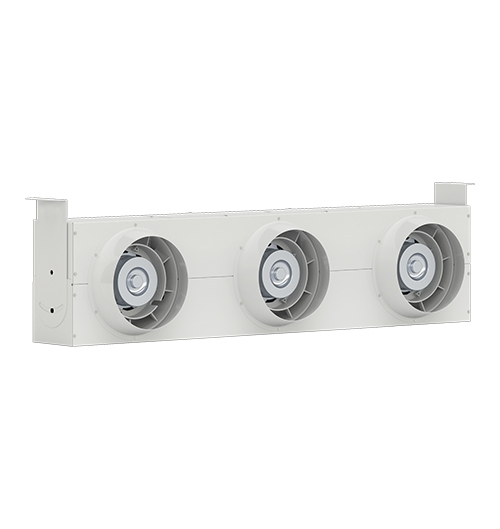

The VRG induction fan was developed to optimize ventilation in parking garages, promoting air circulation and removing gases from vehicle exhausts. It features easy installation without the need for ductwork and can be mounted directly using adjustable support feet, allowing for angular variation and greater flexibility in positioning. In addition to being ideal for garages, the Sicflux VRG can be used in large spaces to assist air circulation in main exhaust systems. This fan significantly contributes to air quality and temperature control, ensuring a safer and more comfortable environment.
About the Product
✲ Ultra-compact with two speeds
✲ Equipped with a motor featuring ball bearings and thermal protection
✲ White electrostatic powder coating
✲ 1-year warranty
Technical Specifications

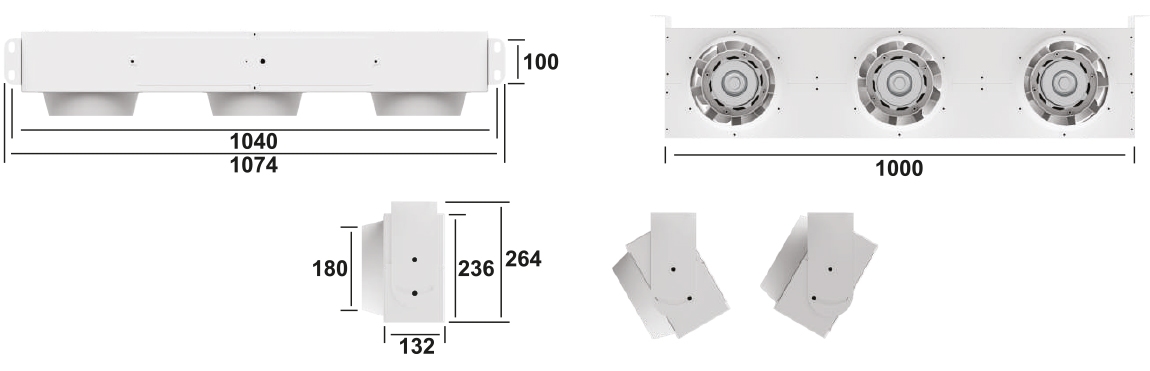

The VRG can be adjusted for a working angle within a total range of 60°.
| Máx Speed | Min Speed | ||
|---|---|---|---|
| Maximum Flow Rate | m3/h | 2200 | 1600 |
| CFM | 1294 | 941 | |
| Discharge Speed [m/s] | 8 | 6 | |
| Noise Level [dBA] | 68 | 60 | |
| Total Power Absorbed [W] | 280 | 230 | |
| Weight [Kg] | 14 | ||
| Single Phase Voltage [V] | 220 | ||
| Frequency [Hz] | 50 / 60 | ||
