The Maxx line of compact blowers is a complete solution for air renewal in a variety of spaces with little or no ventilation. With different models designed to meet specific needs, the Maxx line provides comfort and air quality for occupants.
Easy maintenance:
The ability to remove the motor housing without disassembling the entire installation makes maintenance quicker and more convenient. This saves time and avoids the hassle of major disassembly.
If the motor needs to be replaced, the process is also simplified, avoiding the need to tamper with the entire duct system.
Installation in tight spaces:
The compact design of the Maxx blowers allows for installation in areas with limited space, making them ideal for environments with space constraints.
Convenience:
This feature ensures greater practicality, as there is no need to dismantle the entire system for maintenance or motor replacement.
About the Product

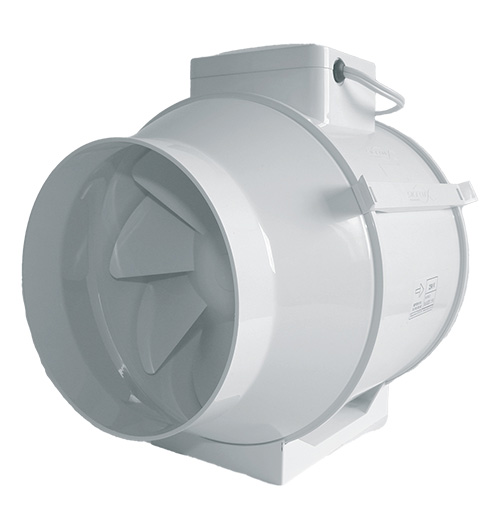

Maxx Kitchen (150) Application – The Maxx was meticulously designed to meet the specific needs of residential kitchens and small common areas, combining efficiency, safety, and intelligent design:
The “split” concept, with the motor separated from the heat zone, ensures greater durability and performance, while also reducing noise and providing a more pleasant environment.
The discreet intake grille integrates with the kitchen’s design, while the built-in filter and UV-protected plastic ensure long-lasting and reliable performance, even allowing for installation in outdoor areas. These combined features make the Maxx Kitchen (150) an effective and durable solution for kitchen air exhaust.
Focus: Air renewal in residential kitchens with low noise.
Main Features:
✲ “Split” concept (motor away from heat source)
✲ Discreet intake grille
✲ Integrated filter for increased motor durability
✲ UV-protected plastic, allowing motor exposure to weather
✲ Duct-oriented design: optimized airflow in duct systems
✲ Ultra-compact design: ideal for tight spaces
✲ Durable motor with bearing mounts
✲ Flexible installation: in series or parallel
✲ Safety: IP X4 – Class II
✲ Easy maintenance: motor access without disconnecting the duct
✲ Thermal protector: prevents overheating
✲ Air control: two adjustable speeds
✲ Aesthetics: white color
✲ Compliant with INMETRO Ordinance 371/2009
✲ ETL certified for the US and Canada (100 to 200/115V)
Technical Specifications
| Maximum Flow Rate [m³/h] | CFM | Maximum Pressure [mmca] | Noise Level [dBA] | Frequency [Hz] | Motor Power [W] | Absorbed Power [W] | Voltage [V] | Duct [Pol] | Weight [Kg] |
|---|---|---|---|---|---|---|---|---|---|
| 440 | 258 | 25 | 28 | 50/60 | 45 | 88/77 | 127/220 | 6 | 2,99 |

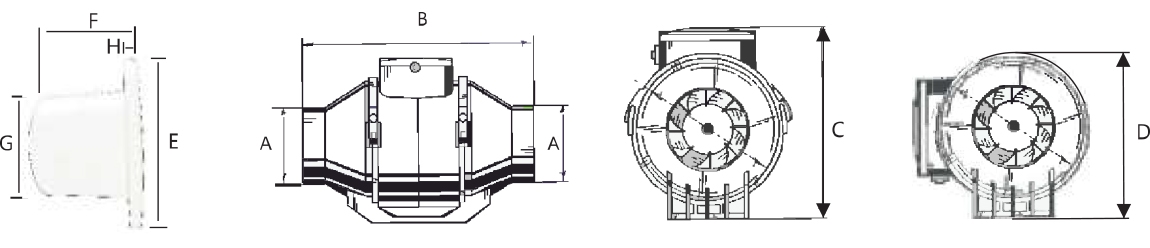

| Model | Dimensions (mm) | |||||||
|---|---|---|---|---|---|---|---|---|
| A | B | C | D* | E | F | G | H | |
| Maxx Kitchen 150 | 148 | 299 | 249 | 218 | 201 | 99 | 146 | 9 |
