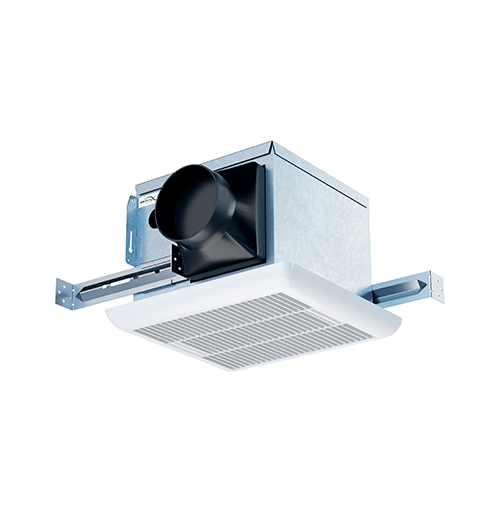

Ventilador muito silencioso para fixação no teto ou na parede Hold e ETLavaliação e confirmação dos padrões de segurança UL e cUL. Certificação HVI e ENERGY STAR.Vem com um motor de partida com capacitor, conhecido por sua alta eficiência e confiabilidade duradoura. Possui avaliação ETL e está em conformidade com os padrões de segurança UL e cUL.
About the Product
Housing:
✲ Made of rugged 26 GA galvanized steel;
✲ Detachable 4 inch polymeric collar which includes a light weight built in back draft damper

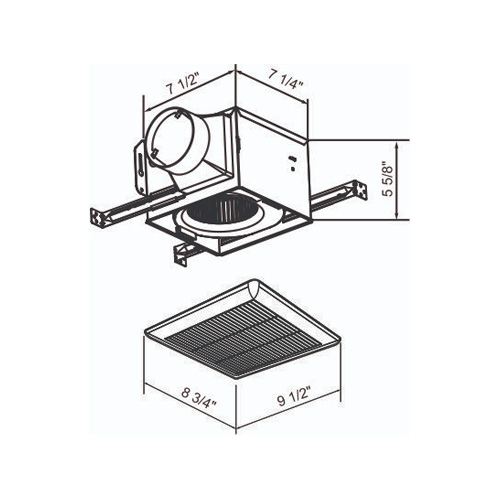

✲ Housing size: 7-1/2″x7-1/4″x5-5/8.

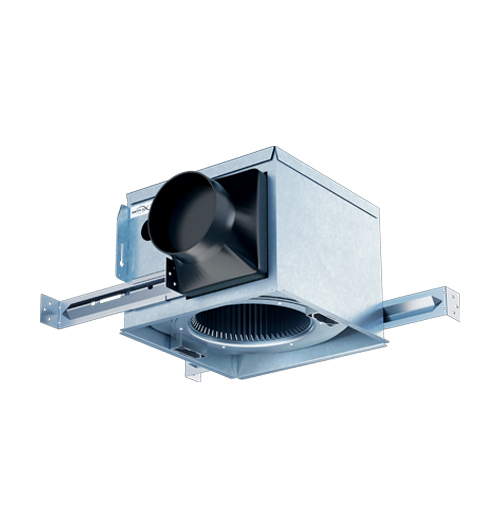

Motor/Blower:
✲ Plug in permanently lubricated motor – Engineered for continuous operation;
✲ Power rating should be 120 volts and 60/50Hz;
✲ Motor comes with a built in overload disconnect for safety and longer motor life.
Grille:
✲ The grille is low profile that has elegance and still able to maintain its simplicity.
✲ Grille dimension: 8-3/4″x9-1/2″.
Typical specification:
✲ Ceiling ventilador shall have corrosion resistance galvanized steel.
✲ It shall be ducted to a roof vent or wall cap using 4 inch round pipe.
✲ Blower assembly shall be removable, have a centrifugal type blower wheel and a permanently lubricated motos designed for continuous operation.
✲ Includes an attachable non metallic collar with build in back draft damper.

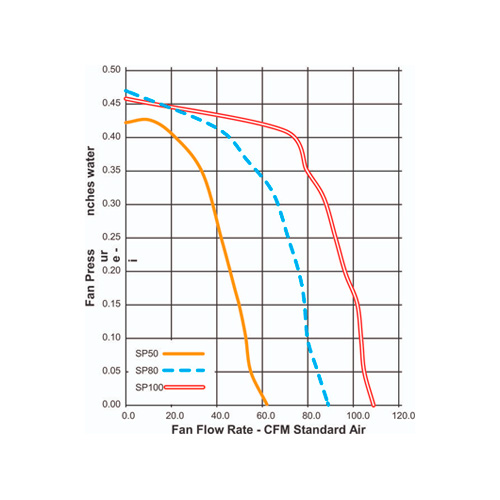

✲ Air and sound delivery shall meet the ENERGY STAR, HVI certified ratings as per the fan curves attached.
Technical Specifications
Technical specifications for 230 V / 60 Hz.
| Model Number | SP50 | SP80 | SP100 | |||
|---|---|---|---|---|---|---|
| Static Pressure in Inches W.G | 0.1 | 0.25 | 0.1 | 0.25 | 0.1 | 0.25 |
| Air Volume (CFM) | 50 | 42 | 80 | 72 | 100 | 72 |
| Noise (sones) | 0.4 | N/A | 1.0 | N/A | 2.0 | N/A |
| Fan Watts | 17W | 22W | 27W | |||
| Duct Diameter | 4″ | |||||
| Power Rating (V/Hz) | 120/60/50Hz | |||||
