The ARKIT line from Sicflux offers two options to meet your ventilation needs: the ARKIT Extractor and the ARKIT Complete Kit.
ARKIT Extractor:
✲ Flexibility: Allows you to purchase accessories separately, such as flexible tubes and external grilles, for a customized installation.
✲ Package Contents: Only the extractor.
✲ Customization: Choose the accessories that best suit your needs and project.
ARKIT Complete Kit:
✲ Self-closing external grille: Prevents the entry of insects and opposing winds when the extractor is not in use.
✲ Complete solution: Ideal for installations in walls with direct outlets, where the same wall of the ventilated space is the outlet wall.
✲ Package Contents: Extractor + 20 cm flexible tube + self-closing external grille.
✲ Convenience: Everything you need in one box for a quick and easy installation.
About the Product

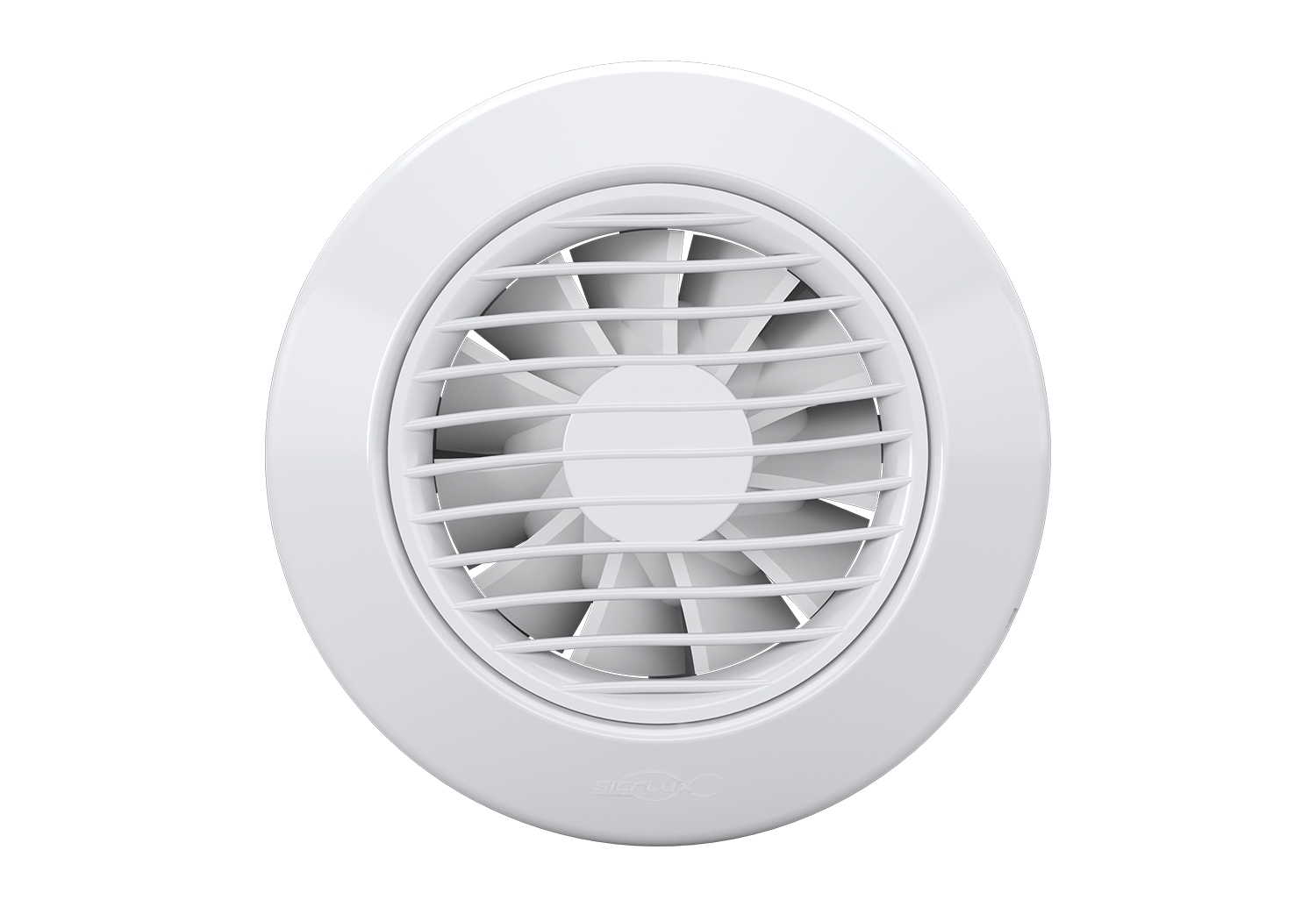

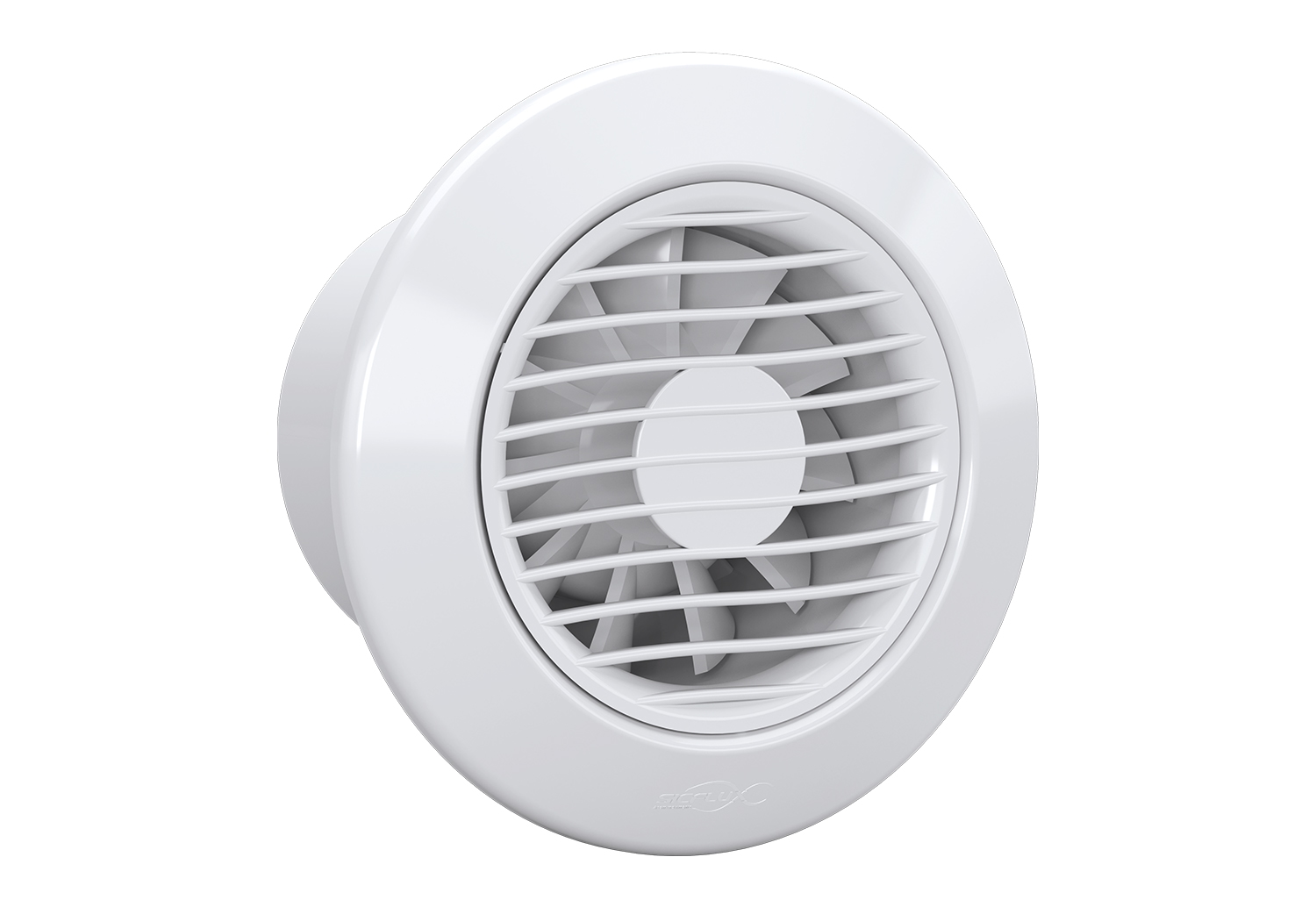

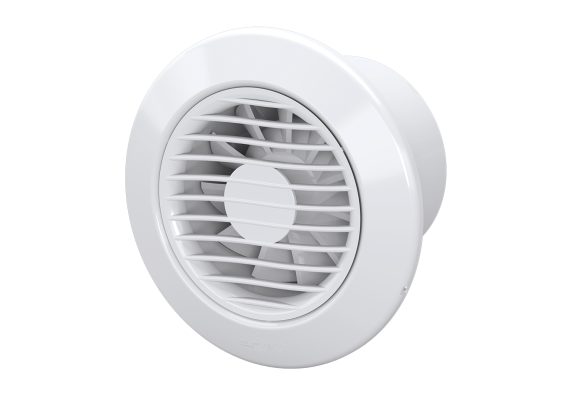

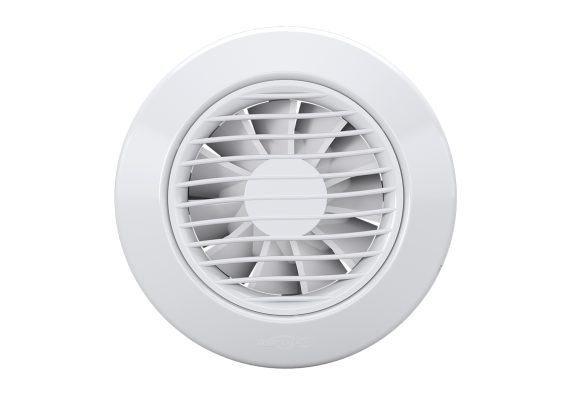

In this line, the ARKIT extractor box contains only the device, so you can purchase ARKIT line accessories separately and install them according to your needs.
Key Features:
✲ Exclusive Circular Design (patented);
✲ Low Noise Level;
✲ Less than 1 cm thickness when installed on the wall;
✲ Easy Installation;
✲ Installation on wall and ceiling;
✲ Thermal Protector;
✲ Front Grille of 09 mm;
✲ Class II;
✲ IP 44.
Available Models:
Extractor / ARKIT 11 – 4” tubes / 100mm
Extractor / ARKIT 16 – 5” tubes / 125mm
Extractor / ARKIT 18/34 – 6” tubes / 150mm
Models
The main difference between the models is their size and, consequently, their air renewal capacity. The larger the device and its flow rate, the more air it can renew.
| MODEL | Dimensions (mm) | |||
|---|---|---|---|---|
| a | b | c | d | |
| ARKIT 10 / 11 | 150 | 85 | 96 | 9 |
| ARKIT 16 | 179 | 97 | 125 | 9 |
| ARKIT 18 / 25 / 34 | 201 | 99 | 146 | 9 |
