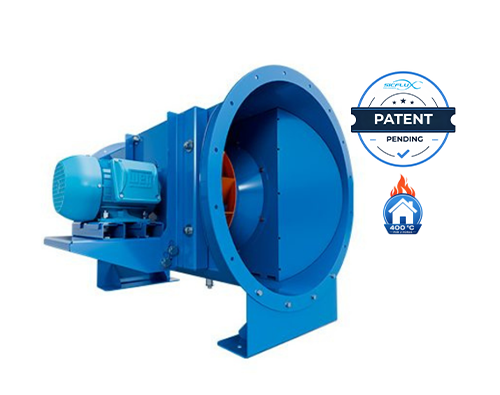

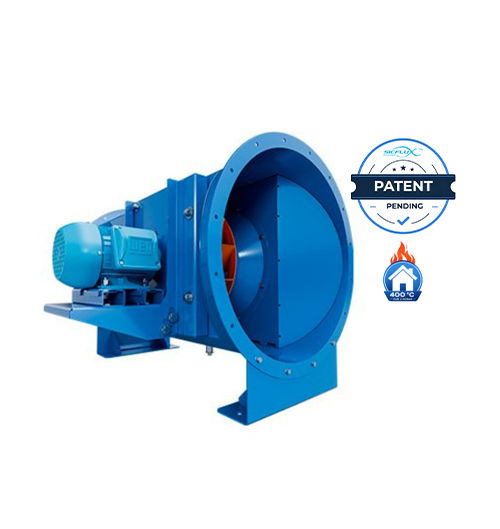

The CTL-4SK is a Limit Load centrifugal fan designed for inline installation. Its motor and bearings are mounted outside the airstream, ensuring reliable operation in high-temperature applications such as kitchen exhaust and smoke extraction. Its tubular construction allows for easy inline installation within the duct system, eliminating the need for additional elbows. The unit is also designed to accommodate the electric motor in four mounting positions and provides exceptional ease of maintenance, allowing the motor-shaft-impeller assembly to be removed without disconnecting the inlet and outlet ductwork.
PATENT PENDING.
About the Product
Key Features
✲ Steel sheet housing ensures high durability and excellent wear resistance;
✲ Aerodynamic construction: the internal aerodynamic design is engineered to optimize fan performance, delivering higher efficiency by reducing energy losses;
✲ Arrangement 04: offers different installation configurations to meet a variety of application requirements;
✲ Limit Load Impeller: designed to handle limited load conditions efficiently, making it suitable for the intended application;
✲ Accessories and optional items: safety guards, inspection door, flexible connector, and horizontal mounting support;
✲ Painted equipment: provides a protective coating against corrosion and wear.
PATENT PENDING.
Technical Specifications
The indicated weights are approximate and do not include the electric motor.
Dimensions – Arrangement 04
| Model | Dimensions (mm) | Weight [Kg] | |||
|---|---|---|---|---|---|
| C | D | D2 | D3 | ||
| 224 | 400 | 315 | 350 | 380 | 25 |
| 250 | 420 | 353 | 382 | 415 | 27 |
| 280 | 480 | 400 | 434 | 467 | 30 |
| 315 | 530 | 450 | 480 | 510 | 33 |
| 355 | 590 | 500 | 536 | 568 | 50 |
| 400 | 700 | 563 | 598 | 630 | 56 |
| 450 | 750 | 633 | 668 | 700 | 67 |
| 500 | 845 | 713 | 748 | 780 | 84 |
| 560 | 930 | 800 | 840 | 880 | 120 |
| 630 | 1100 | 905 | 944 | 982 | 170 |
| 710 | 1170 | 1004 | 1040 | 1081 | 220 |
| 800 | 1340 | 1120 | 1160 | 1200 | 290 |
| 900 | 1500 | 1250 | 1290 | 1330 | 450 |
